Part Number # 721-234/001-000
SKU # 2377947
721-234/001-000
WAGO 721-234/001-000 THT male header
Part Number # 721-234/001-000
SKU # 2377947
$1.76 / Each
Typical price:$1.91 / Each
Wago 721-234/001-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-234/001-000 |
| SKU #: | 2377947 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.669 in H x 1.201 in W x 0.449 in D |
| Number of Positions: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 11.4 mm / 0.449 inch |
| Height: | 17 mm / 0.669 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Weight: | 1.752 g |
| Width: | 30.5 mm / 1.201 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918869249 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.76 / Each
Typical price:$1.91 / Each
Quantity:
WAGO 721-234/001-000 THT male header
Brand: Wago
Part Number: 721-234/001-000
Additional Description: WAGO-721-234/001-000 THT MALE HEADER; 1.0 X 1.0 MM SOLDER PIN; STRAIGHT; 100% PROTECTED AGAINST MISMATING; PIN SPACING 7.5 MM; 4-POLE; LIGHT GRAY 51149525 SOLDER PIN; STRAIGHT; 100% SPACING 7.5 MM; 4-POLE; LIGHT GRAY 51149525
Catalog Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 7.5 mm; 4-pole; light gray
721-234/001-000 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- 100 Percent protected against mismating
- With coding fingers
721-234/001-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2377947Part Number #721-234/001-000UNSPSC39121421UPC04044918869249

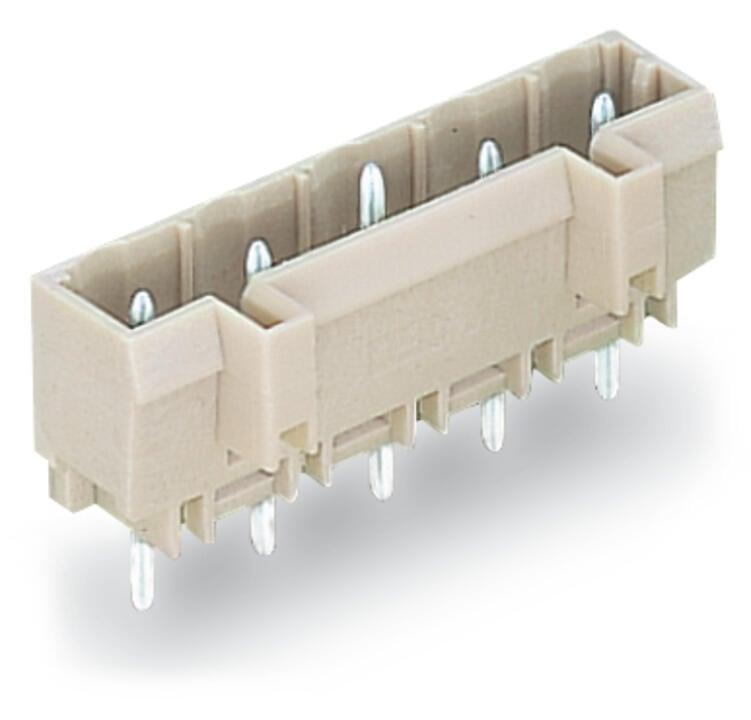

Image provided may only be a representation of final product and may include optional equipment
