Part Number # 721-235/001-040
SKU # 2377948
Image Disclaimers Message
Brand: Wago
721-235/001-040

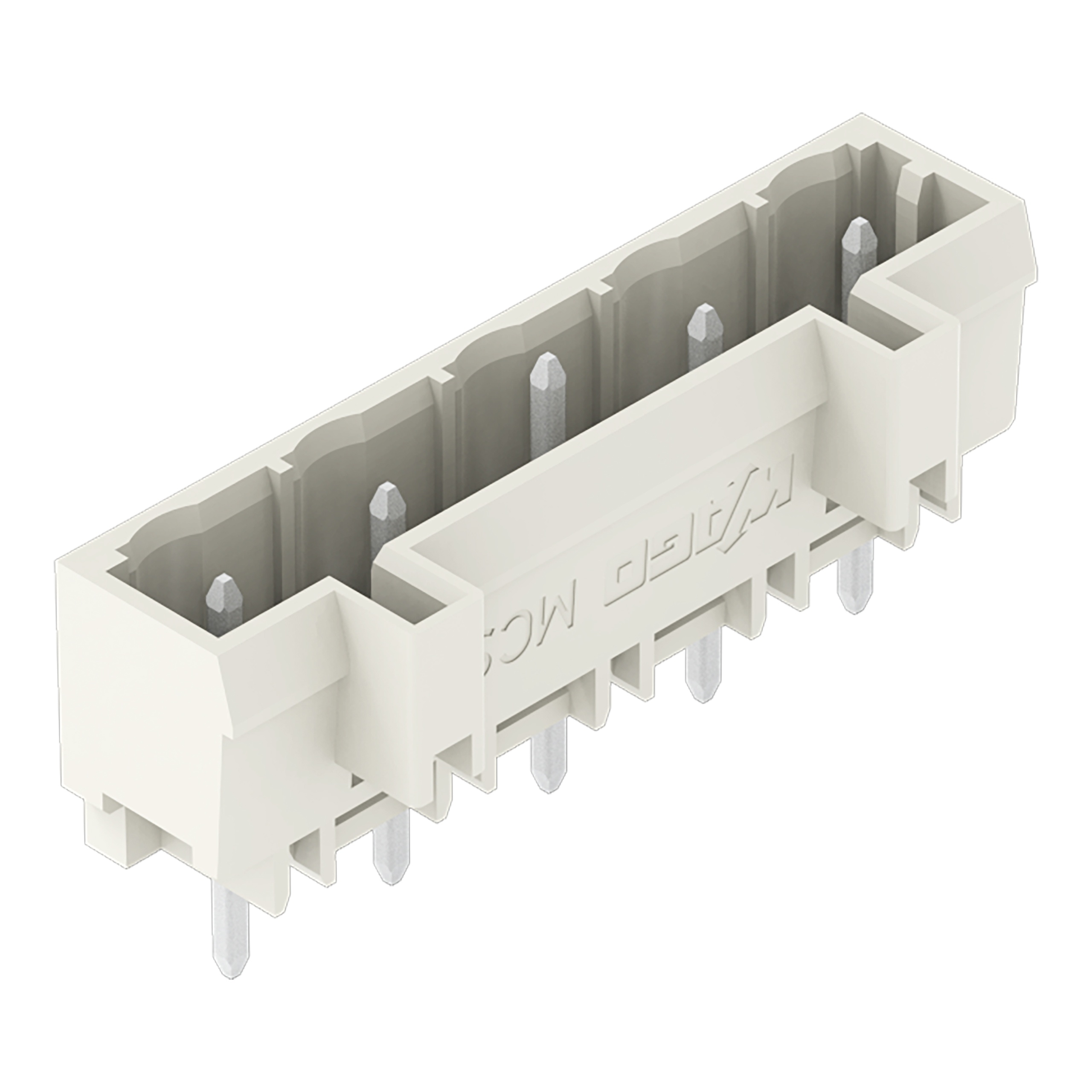

WAGO 721-235/001-040 THT male header
Part Number # 721-235/001-040
SKU # 2377948
$2.25 / Each
Typical price:$2.44 / Each
Wago 721-235/001-040 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-235/001-040 |
| SKU #: | 2377948 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.669 in H x 1.496 in W x 0.449 in D |
| Number of Positions: | 5 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 11.4 mm / 0.449 inch |
| Height: | 17 mm / 0.669 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Weight: | 2.230 g |
| Width: | 38 mm / 1.496 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918869300 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.25 / Each
Typical price:$2.44 / Each
Quantity:
- WAGO, 721-235/001-040, THT Male Header, Straight, 1 kV, 12 A, 5 Positions, 0.295 in Pitch/Row Spacing, -35 to 60 deg C, Polyamide, Light Gray, 0.669 in H x 1.496 in W x 0.449 in D Dimensions
721-235/001-040 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- 100 Percent protected against mismating
- With coding fingers
721-235/001-040 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2377948Part Number #721-235/001-040UNSPSC39121421UPC04044918869300
