721-602

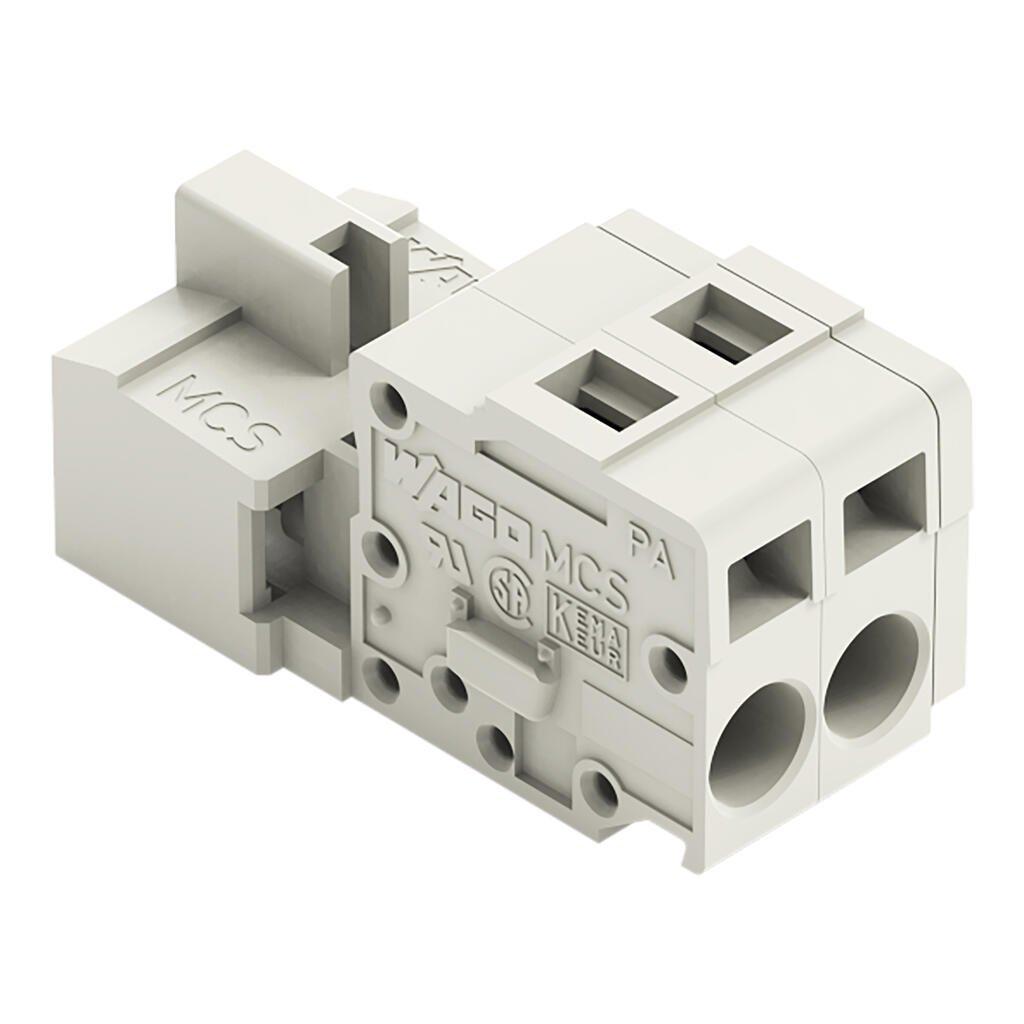

WAGO 721-602 1-conductor male connector
Part Number # 721-602
SKU # 2247229
$3.10 / Each
Typical price:$3.36 / Each
Wago 721-602 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-602 |
| SKU #: | 2247229 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.563 in H x 0.52 in W x 1.083 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 27.5 mm / 1.083 inch |
| Height: | 14.3 mm / 0.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 3.420 g |
| Width: | 13.2 mm / 0.52 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918261623 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.10 / Each
Typical price:$3.36 / Each
Quantity:
WAGO 721-602 1-conductor male connector
Brand: Wago
Part Number: 721-602
Additional Description: WAGO-721-602 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 5 MM; 2-POLE; 2,50 MM ; LIGHT GRAY 51111156
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 2-pole; 100% protected against mismating; 2,50 mm²; light gray
721-602 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- 3- to 5-pole male connectors are also available with preceding ground contact
- 100 Percent protected against mismating
- With coding fingers
721-602 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2247229Part Number #721-602UNSPSC39121421UPC04044918261623
