Part Number # 721-604/018-000
SKU # 2431555
721-604/018-000

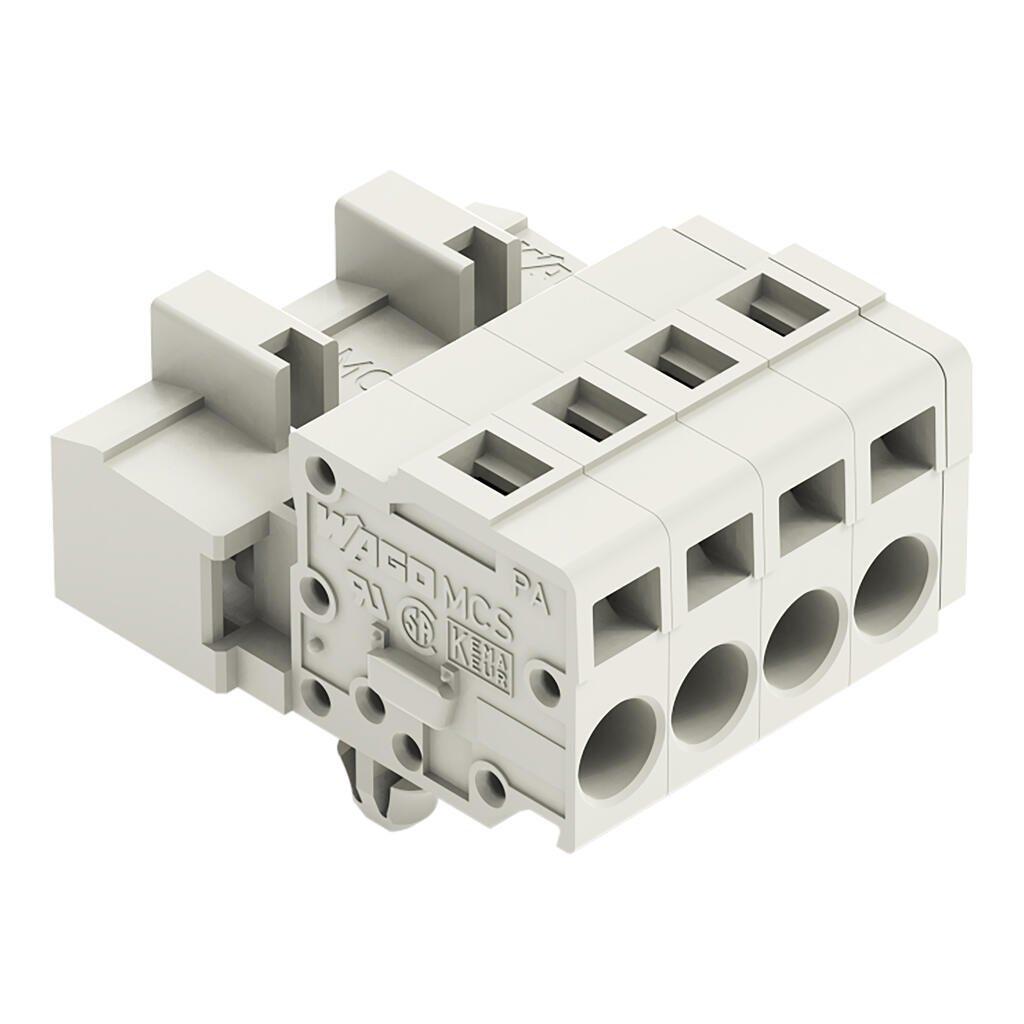

WAGO 721-604/018-000 Electrical Connector Assembly
Part Number # 721-604/018-000
SKU # 2431555
$4.90 / Each
Typical price:$5.31 / Each
Wago 721-604/018-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-604/018-000 |
| SKU #: | 2431555 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.74 in H x 0.913 in W x 1.083 in D |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Mounting type: | Panel |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918286329 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.90 / Each
Typical price:$5.31 / Each
Quantity:
WAGO 721-604/018-000 Electrical Connector Assembly
Brand: Wago
Part Number: 721-604/018-000
Additional Description: WAGO-721-604/018-000 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; SNAP-IN MOUNTING FEET; 2.5 MM; PIN SPACING 5 MM; 4-POLE; 2,50 MM; LIGHT GRAY 51113171
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 4-pole; 100% protected against mismating; DIN-35 rail/panel mounting; Snap-in mounting feet; 2,50 mm²; light gray
721-604/018-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- 3- to 5-pole male connectors are also available with preceding ground contact
- 100 Percent protected against mismating
- With coding fingers
721-604/018-000 Standards
CSA|IEC/EN 60664-1|DIN 35|RoHS CompliantSKU #2431555Part Number #721-604/018-000UNSPSC39121421UPC04044918286329
