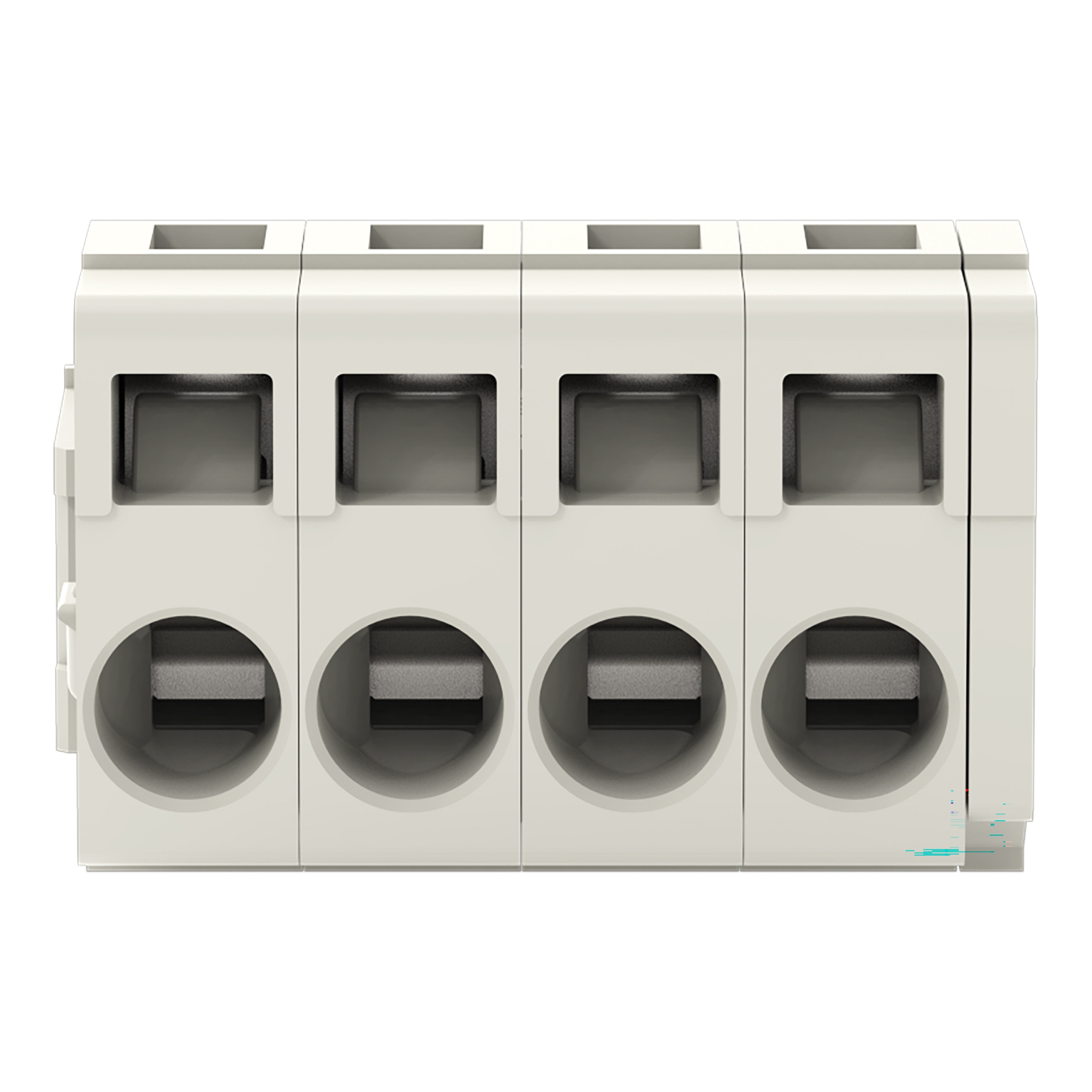

- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal Cage clamp actuation
- For wire-to-wire and board-to-wire connections
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- 3 to 5 pole male connectors are also available with preceding ground contact
- 100 % protected against mismating
- With coding fingers
Specifications
Brand: Wago
Amperage Rating: 12 A
Dimensions: 0.563 in H x 0.913 in W x 1.083 in D
Number of Poles: 4
Series: 721
Spacing: 5 mm
Temperature Rating (Degrees F): -60 to 85 deg C
Type: 1-Conductor
Voltage Rating: 630 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connection type: Clamp
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 27.5 mm / 1.083 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: Free Hanging/In-Line
Number of connection types: 1
Rated current: 0
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 4
Weight: 6.366 g
Width: 23.2 mm / 0.913 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121421
UPC: 04044918262453
Item FeaturesConnectors
Item Features
Item FeaturesRoHS Compliant|UL94|DIN EN 61984
