Part Number # 721-607
SKU # 2431465
721-607

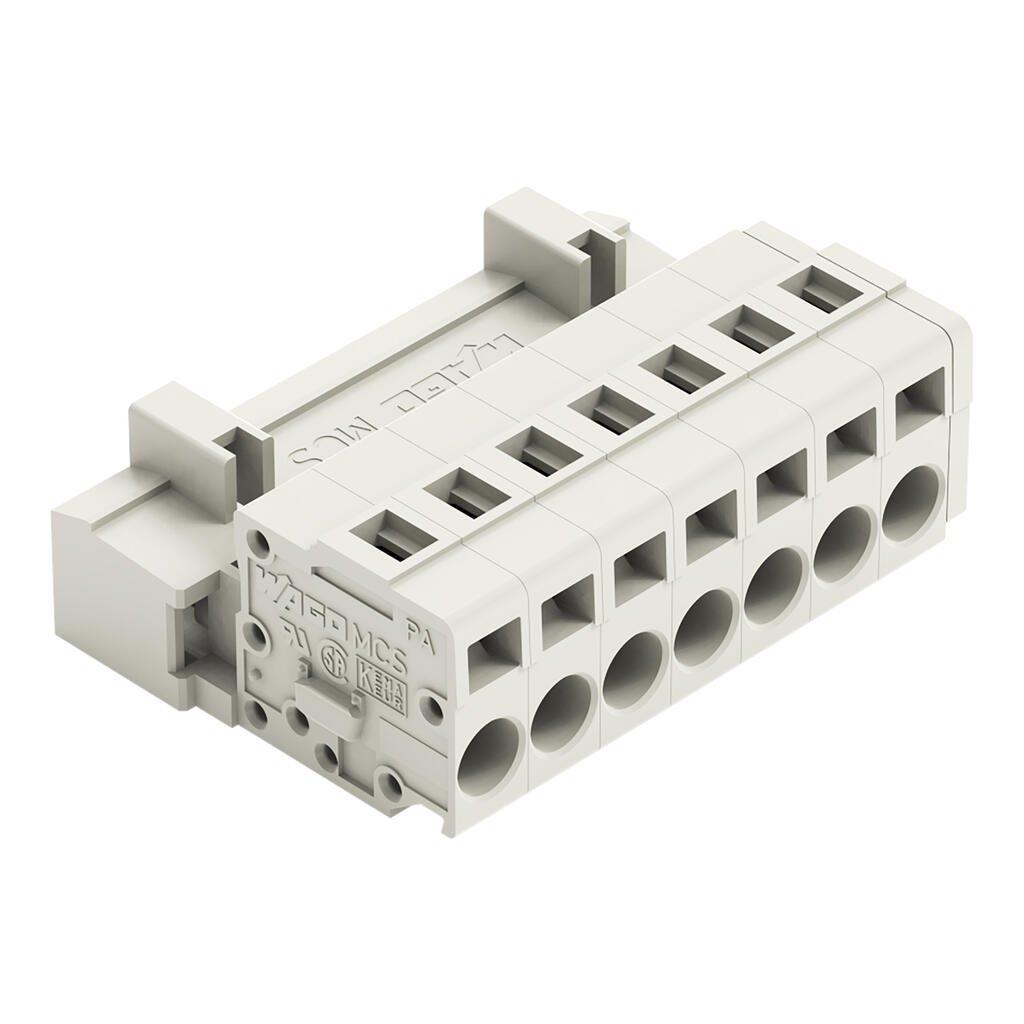

WAGO 721-607 Electrical Connector Assembly
Part Number # 721-607
SKU # 2431465
$7.74 / Each
Typical price:$8.39 / Each
Wago 721-607 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 721-607 |
| SKU #: | 2431465 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.563 in H x 1.504 in W x 1.083 in D |
| Number of Poles: | 7 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918263382 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.74 / Each
Typical price:$8.39 / Each
Quantity:
WAGO 721-607 Electrical Connector Assembly
Brand: Wago
Part Number: 721-607
Additional Description: WAGO-721-607 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; 2.5 MM; PIN SPACING 5 MM; 7-POLE; 2,50 MM; LIGHT GRAY 51111332
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 7-pole; 100% protected against mismating; 2,50 mm²; light gray
721-607 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- 3- to 5-pole male connectors are also available with preceding ground contact
- 100 Percent protected against mismating
- With coding fingers
721-607 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2431465Part Number #721-607UNSPSC39121421UPC04044918263382
Image provided may only be a representation of final product and may include optional equipment
