Part #:721-612/019-000
SKU #: 2380387
$10.81/EA
Key Features
Part #:721-612/019-000
SKU #: 2380387
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$10.81/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 27.5 mm / 1.083 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Mounting type: Mounting flange || Feed-through mounting || Panel mounting
Number of connection types: 1
Rated current: 0
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 12
Weight: 18.920 g
Width: 74.8 mm / 2.945 inch
UNSPSC: 39121421
UPC: 04044918264471

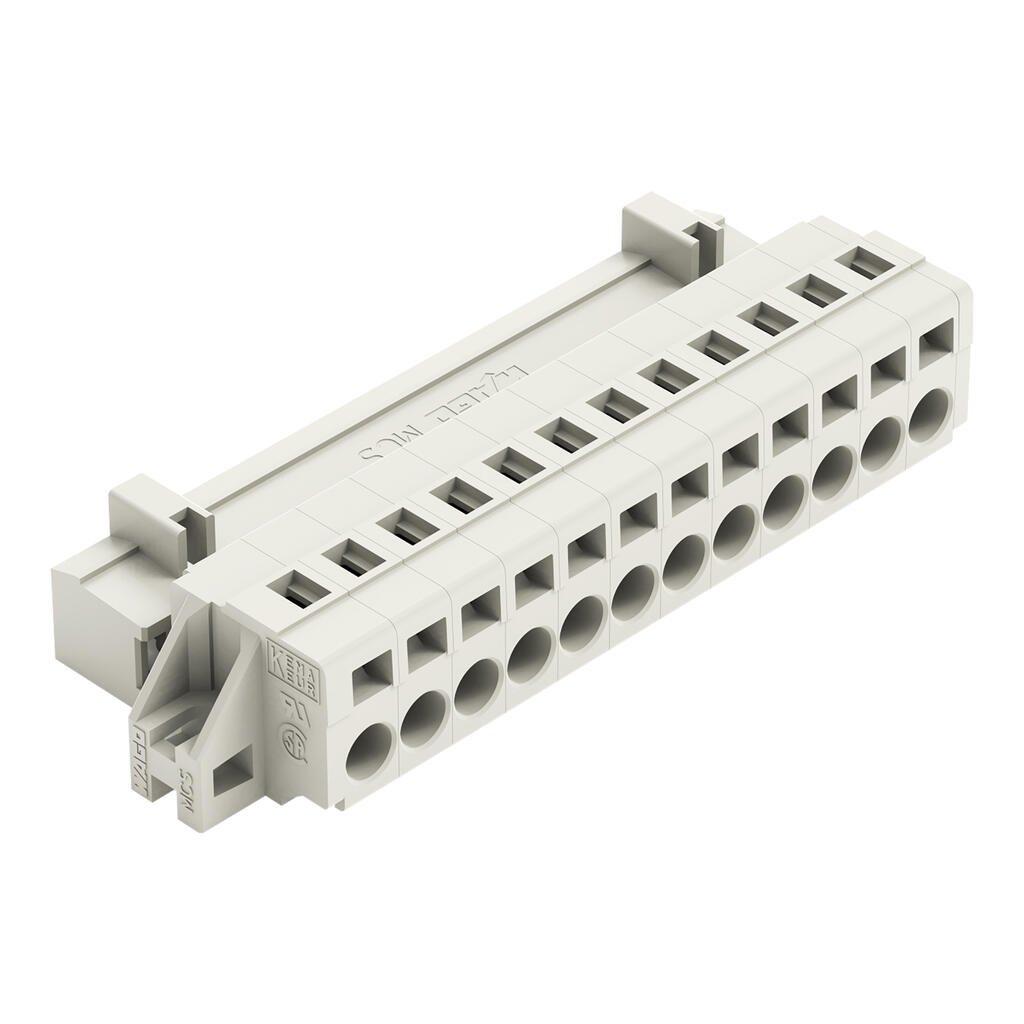

WAGO 721-612/019-000 1-conductor male connector
Additional Description: WAGO-721-612/019-000 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; CLAMPING COLLAR; 2.5 MM; PIN SPACING 5 MM; 12-POLE; 2,50 MM; LIGHT GRAY 51111432 CLAMPING COLLAR; 2.5 MM ; PIN SPACING 5 MM; 12-POLE; 2,50 Mm ; LIGHT GRAY
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 12-pole; 100% protected against mismating; clamping collar; 2,50 mm²; light gray
