Part Number # 722-210/026-000
SKU # 2210468
722-210/026-000

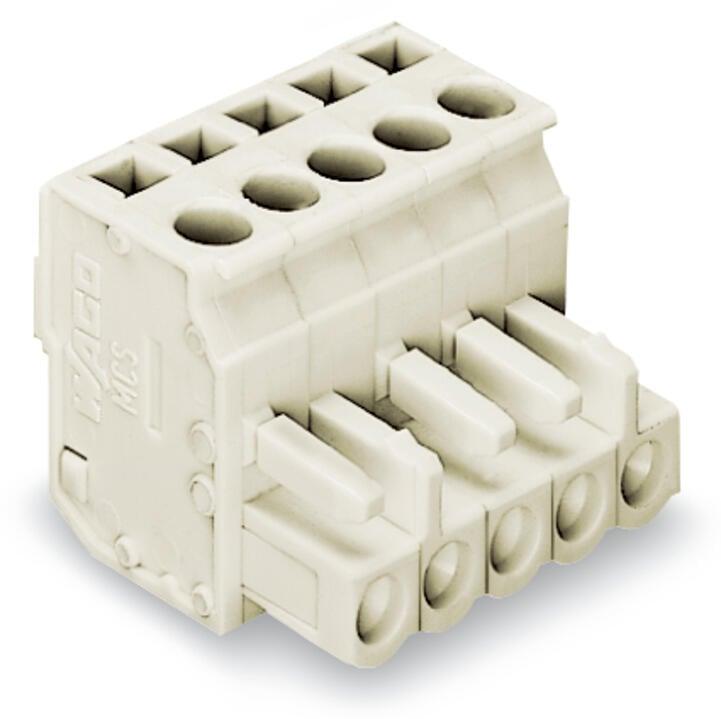

WAGO 722-210/026-000 1-conductor female plug
Part Number # 722-210/026-000
SKU # 2210468
Wago 722-210/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 722-210/026-000 |
| SKU #: | 2210468 |
| Dimensions: | 0.783 in H x 2.063 in W x 0.896 in D |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Conductor entry direction to mating direction: | 90 ° |
| Connection type: | Clamp |
| Contact material: | Copper alloy |
| Depth: | 22.75 mm / 0.896 inch |
| Height: | 19.9 mm / 0.783 inch |
| Rated current: | 14 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 10 |
| Weight: | 18.820 g |
| Width: | 52.4 mm / 2.063 inch |
| UNSPSC: | 39121421 |
| UPC: | 04044918391344 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 722-210/026-000 1-conductor female plug
Brand: Wago
Part Number: 722-210/026-000
Additional Description: WAGO-722-210/026-000 1-CONDUCTOR FEMALE PLUG; ANGLED; 100% PROTECTED AGAINST MISMATING; 2.5 MM; PIN SPACING 5 MM; 10-POLE; 2,50 MM; LIGHT GRAY 51121348 100% PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 5 MM; 10-POLE; 2,50 MM ; LIGHT GRAY 51121348
Catalog Description: 1-conductor female connector, angled; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 10-pole; 100% protected against mismating; 2,50 mm²; light gray
722-210/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- 100 Percent protected against mismating
- Coding option available
722-210/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2210468Part Number #722-210/026-000UNSPSC39121421UPC04044918391344
Image provided may only be a representation of final product and may include optional equipment
