Part Number # 722-734/039-000
SKU # 2339100
Image Disclaimers Message
Brand: Wago
722-734/039-000

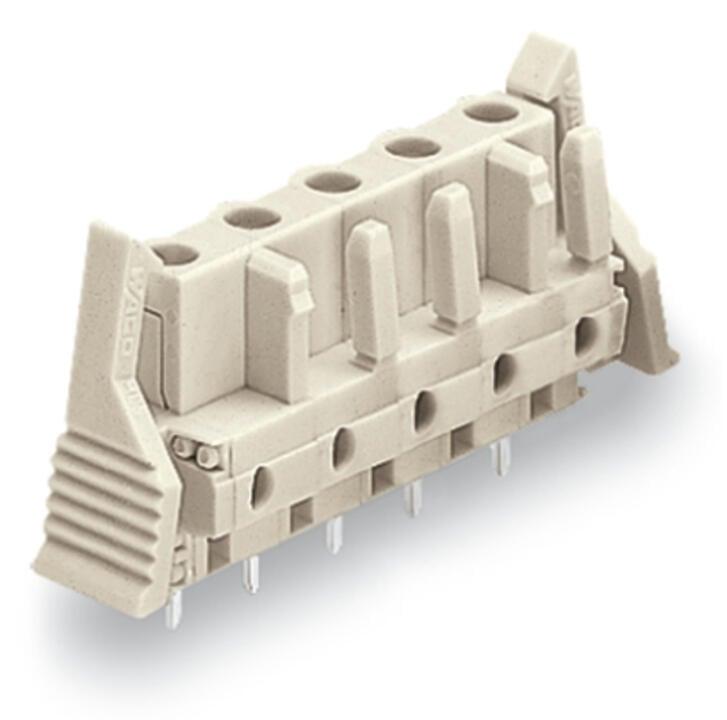

WAGO 722-734/039-000 THT female header
Part Number # 722-734/039-000
SKU # 2339100
$4.22 / Each
Typical price:$4.57 / Each
Wago 722-734/039-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 722-734/039-000 |
| SKU #: | 2339100 |
| Amperage Rating: | 12 A |
| Dimensions: | 1.047 in H x 1.705 in W x 0.457 in D |
| Number of Positions: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connector (connection type): | For PCB |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 11.6 mm / 0.457 inch |
| Height: | 26.6 mm / 1.047 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Weight: | 5.200 g |
| Width: | 43.3 mm / 1.705 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918580878 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.22 / Each
Typical price:$4.57 / Each
Quantity:
- WAGO, 722-734/039-000, THT Female Header, Straight, 1 kV, 12 A, 4 Positions, 0.295 in Pitch/Row Spacing, -35 to 60 deg C, Polyamide, Light Gray, 1.047 in H x 1.705 in W x 0.457 in D Dimensions
722-734/039-000 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- Touch-proof PCB outputs
- Easy-to-identify PCB inputs and outputs
- 100 Percent protected against mismating
- With coding fingers
722-734/039-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2339100Part Number #722-734/039-000UNSPSC39121421UPC04044918580878
