Brand: Wago

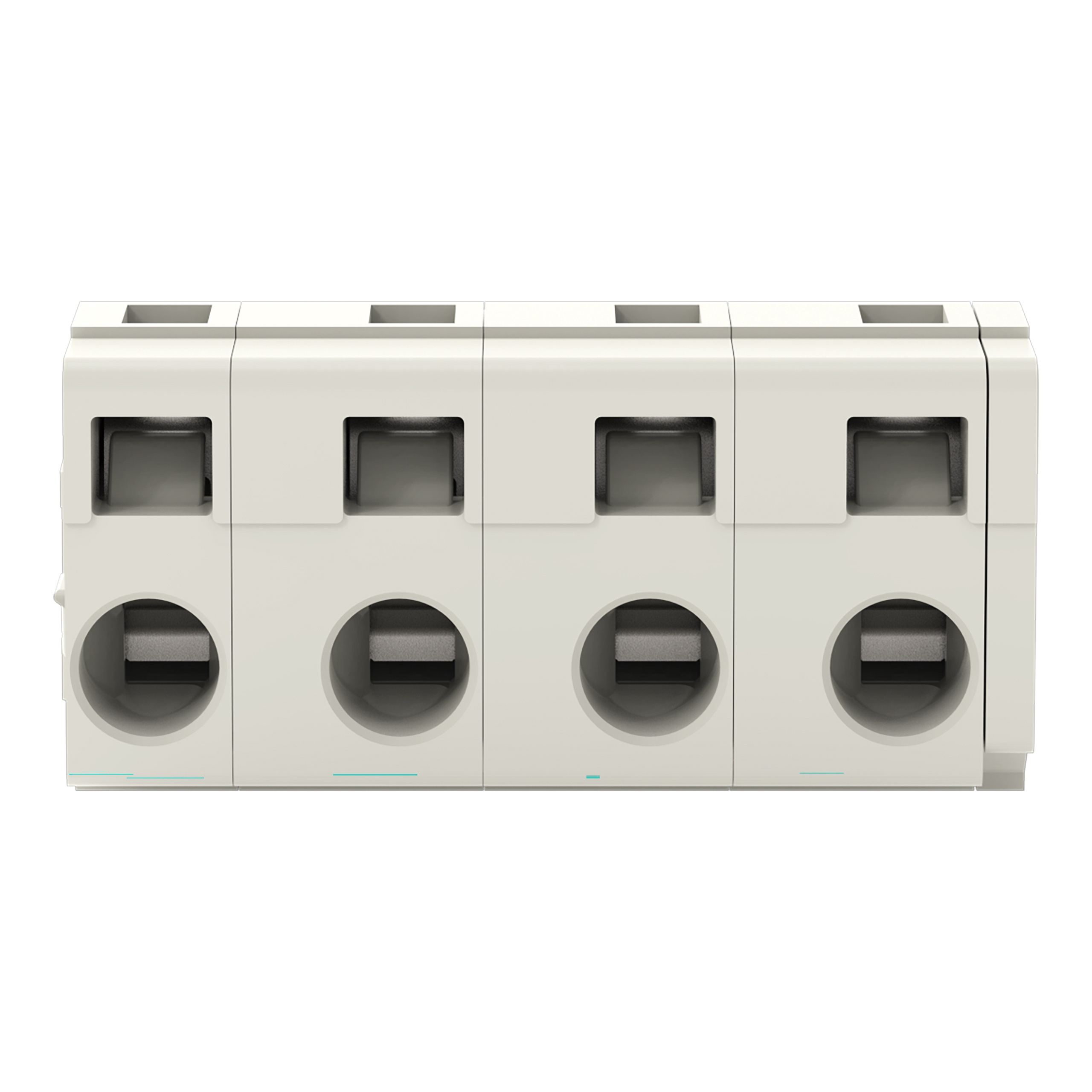

WAGO 723-604 1-conductor male connector
Image Disclaimers Message
Brand: Wago
WAGO 723-604 1-conductor male connector
Brand: Wago
WAGO 723-604 1-conductor male connector
Part #:723-604
SKU #: 2210472
$4.43/EA
Key Features
Part #:723-604
SKU #: 2210472
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$4.43/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 27.5 mm / 1.083 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 0
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 4
Weight: 7.250 g
Width: 30.7 mm / 1.209 inch
UNSPSC: 39121421
UPC: 04044918265348
WAGO 723-604 1-conductor male connector
Additional Description: WAGO-723-604 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; 2.5 MM; PIN SPACING 7.5 MM; 4-POLE; 2,50 MM; LIGHT GRAY 51111513 PROTECTED AGAINST MISMATING; 2.5 MM ; PIN SPACING 7.5 MM; 4-POLE; 2,50 MM ; LIGHT GRAY 51111513
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 7.5 mm; 4-pole; 100% protected against mismating; 2,50 mm²; light gray
