Part Number # 733-107/037-000
SKU # 2234257
Image Disclaimers Message
733-107/037-000

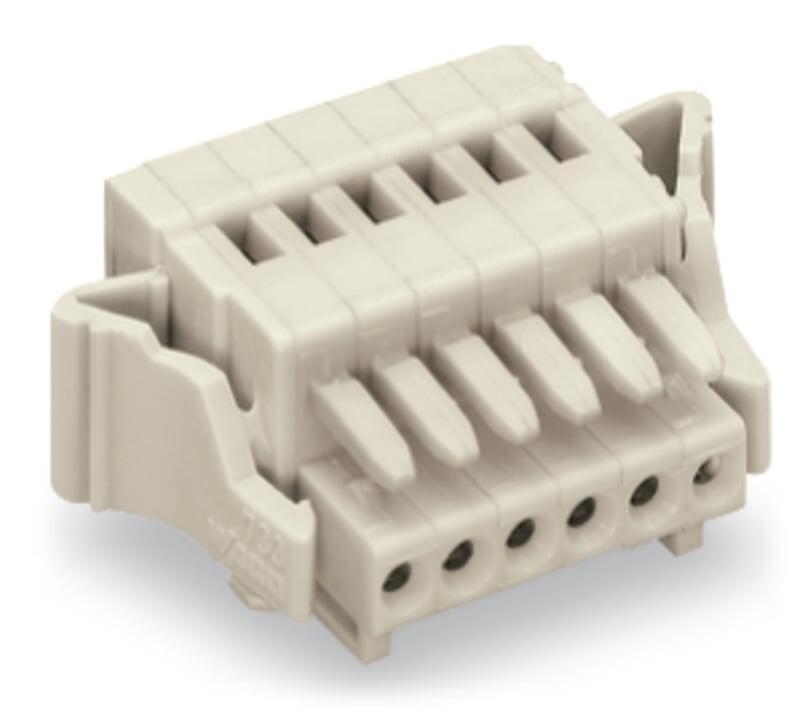

WAGO 733-107/037-000 1-conductor female plug
Part Number # 733-107/037-000
SKU # 2234257
$7.01 / Each
Typical price:$7.59 / Each
Wago 733-107/037-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 733-107/037-000 |
| SKU #: | 2234257 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.465 in H x 1.154 in W x 0.673 in D |
| Number of Poles: | 7 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 20 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 17.1 mm / 0.673 inch |
| Height: | 11.8 mm / 0.465 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Solid conductor: | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Total number of connection points: | 7 |
| Weight: | 3.481 g |
| Width: | 29.3 mm / 1.154 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454215637 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.01 / Each
Typical price:$7.59 / Each
Quantity:
WAGO 733-107/037-000 1-conductor female plug
Brand: Wago
Part Number: 733-107/037-000
Additional Description: WAGO-733-107/037-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; LOCKING LEVER; 0.5 MM ; PIN SPACING 2.5 MM; 7-POLE; 0,50 MM ; LIGHT GRAY 2-P 51169812
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 0.5 mm²; Pin spacing 2.5 mm; 7-pole; 100% protected against mismating; Lateral locking levers; 0,50 mm²; light gray
733-107/037-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Strain relief plates for factory and field assembly
- 100 Percent protected against mismating
- Coding option available
733-107/037-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2234257Part Number #733-107/037-000UNSPSC39121421UPC04045454215637
