Part Number # 733-202
SKU # 2349145
Image Disclaimers Message
733-202

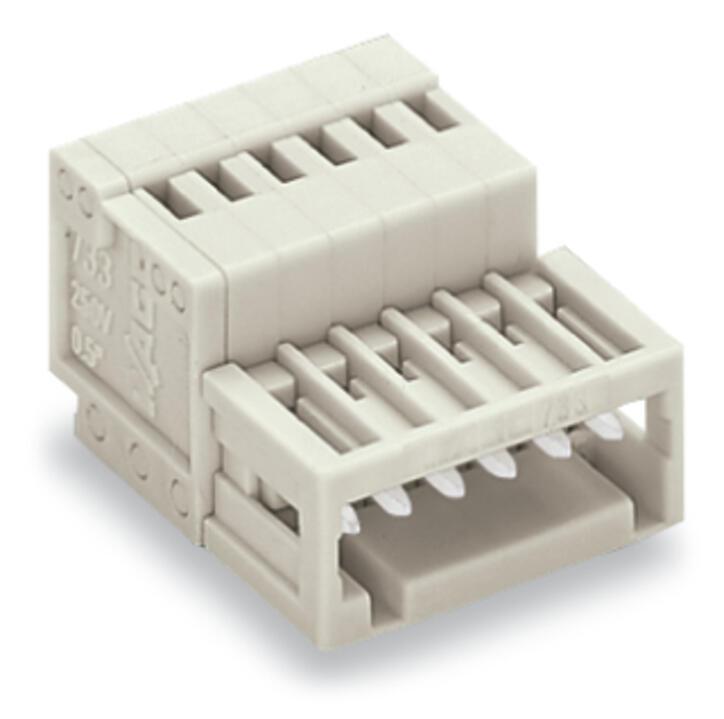

WAGO 733-202 1-conductor male connector
Part Number # 733-202
SKU # 2349145
$2.81 / Each
Typical price:$3.04 / Each
Wago 733-202 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 733-202 |
| SKU #: | 2349145 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.465 in H x 0.295 in W x 0.799 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 20 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 20.3 mm / 0.799 inch |
| Height: | 11.8 mm / 0.465 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Solid conductor: | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Total number of connection points: | 2 |
| Weight: | 1.186 g |
| Width: | 7.5 mm / 0.295 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918849524 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.81 / Each
Typical price:$3.04 / Each
Quantity:
- WAGO, 733-202, 1-Conductor Male Connector, Operating Tool, 320 V, 6 A, 2 Pole, 28 to 20 AWG Wire, 0.2 to 0.24 in Wire Strip Length, Clamp Connection, -35 to 60 deg C, Polyamide, Light Gray, 0.465 in H x 0.295 in W x 0.799 in D Dimensions
733-202 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- 100 Percent protected against mismating
- Coding option available
733-202 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2349145Part Number #733-202UNSPSC39121421UPC04044918849524
