Brand: Wago

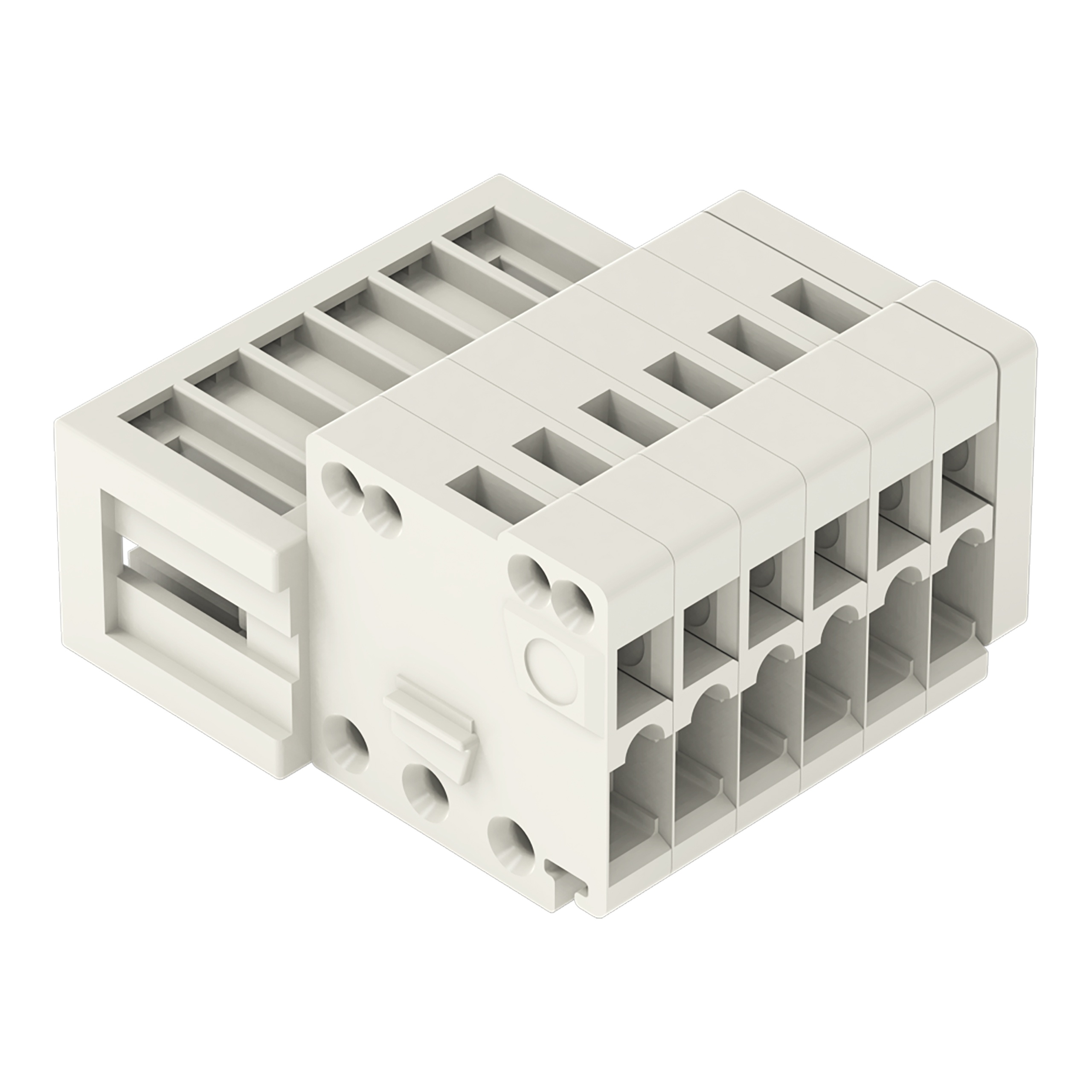

WAGO 733-208 1-conductor male connector
Image Disclaimers Message
Brand: Wago
WAGO 733-208 1-conductor male connector
Brand: Wago
WAGO 733-208 1-conductor male connector
Part #:733-208
SKU #: 2234013
$6.79/EA
Key Features
Part #:733-208
SKU #: 2234013
Brand: Wago
Amperage Rating: 6 A
Dimensions: 0.465 in H x 0.886 in W x 0.799 in D
Number of Poles: 8
Series: 733
Spacing: 2.5 mm
$6.79/EA
Specifications
Brand: Wago
Amperage Rating: 6 A
Dimensions: 0.465 in H x 0.886 in W x 0.799 in D
Number of Poles: 8
Series: 733
Spacing: 2.5 mm
Temperature Rating (Degrees F): -60 to 100 deg C
Type: 1-Conductor
Voltage Rating: 320 V
Wire Size: 28 to 20 AWG
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connection type: Clamp
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: PL
Depth: 20.3 mm / 0.799 inch
Height: 11.8 mm / 0.465 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: Free Hanging/In-Line
Number of connection types: 1
Rated current: 0.25
Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
Total number of connection points: 8
Weight: 4.002 g
Width: 22.5 mm / 0.886 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121421
UPC: 04044918849593
WAGO 733-208 1-conductor male connector
Additional Description: WAGO-733-208 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; 0.5 MM; PIN SPACING 2.5 MM; 8-POLE; 0,50 MM; LIGHT GRAY 51148242 PROTECTED AGAINST MISMATING; 0.5 MM ; PIN SPACING 2.5 MM; 8-POLE; 0,50 MM ; LIGHT GRAY 51148242
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 0.5 mm²; Pin spacing 2.5 mm; 8-pole; 100% protected against mismating; 0,50 mm²; light gray
Item FeaturesRoHS Compliant
