Part Number # 733-336
SKU # 2283552
Image Disclaimers Message
Brand: Wago
733-336

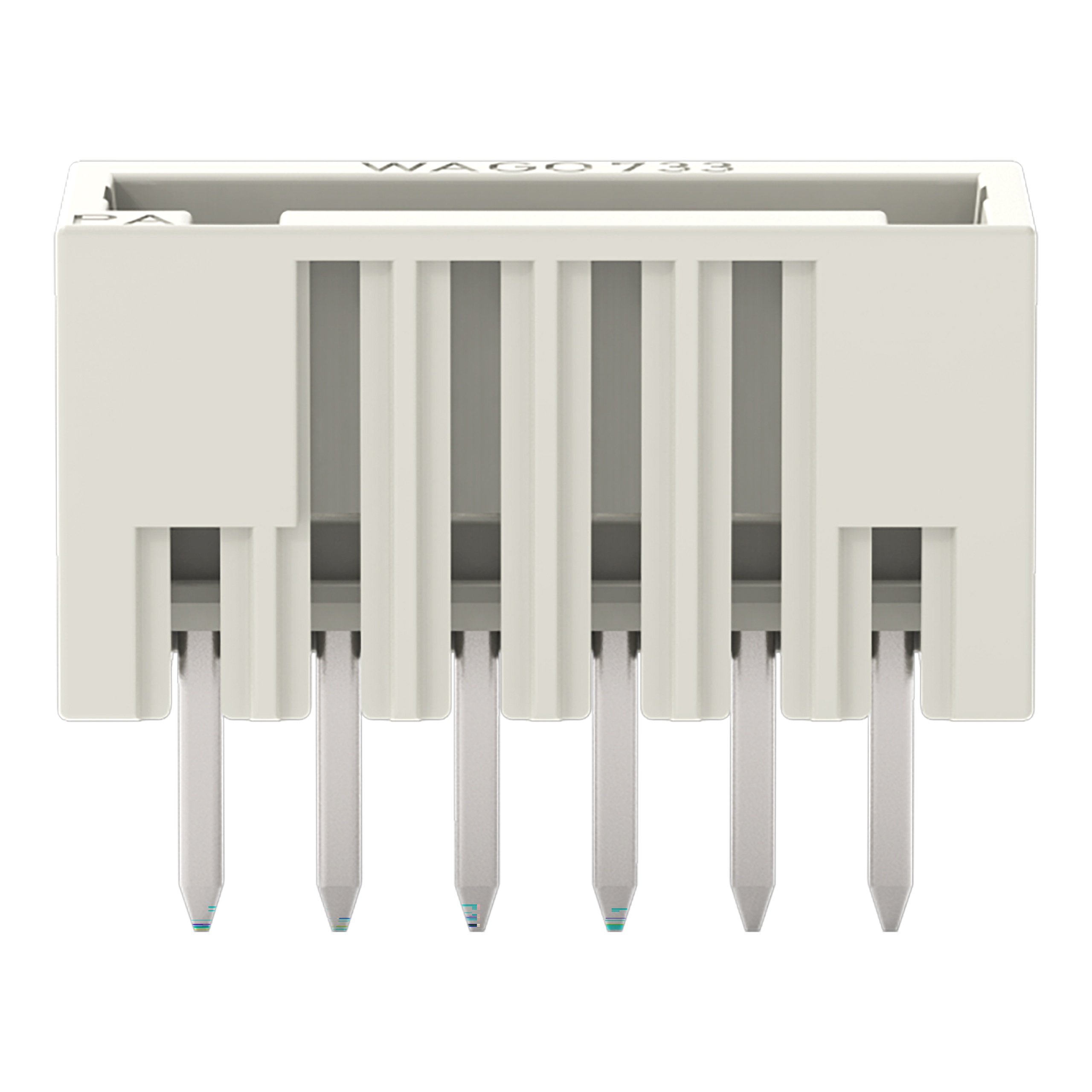

WAGO 733-336 THT male header
Part Number # 733-336
SKU # 2283552
$2.18 / Each
Typical price:$2.36 / Each
Wago 733-336 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 733-336 |
| SKU #: | 2283552 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.531 in H x 0.689 in W x 0.307 in D |
| Number of Positions: | 6 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CN |
| Depth: | 7.8 mm / 0.307 inch |
| Height: | 13.5 mm / 0.531 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Weight: | 0.870 g |
| Width: | 17.5 mm / 0.689 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04050821035633 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.18 / Each
Typical price:$2.36 / Each
Quantity:
WAGO 733-336 THT male header
Brand: Wago
Part Number: 733-336
Additional Description: WAGO-733-336 THT MALE HEADER; 0.8 X 0.8 MM SOLDER PIN; STRAIGHT; 100% PROTECTED AGAINST MISMATING; PIN SPACING 2.5 MM; 6-POLE; LIGHT GRAY 51226878
Catalog Description: THT male header; 0.8 x 0.8 mm solder pin; straight; 100% protected against mismating; Pin spacing 2.5 mm; 6-pole; light gray
733-336 Item Features
- 100 Percent protected against mismating, only mating halves with the same pole number can be connected
- Coding option available
733-336 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2283552Part Number #733-336UNSPSC39121421UPC04050821035633
