733-339/105-604/997-446
WAGO 733-339/105-604/997-446 THR male header
Part Number # 733-339/105-604/997-446
SKU # 2377829
$1274.20 / 290Each
Typical price:$1380.40 / Each
Wago 733-339/105-604/997-446 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 733-339/105-604/997-446 |
| SKU #: | 2377829 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.445 in H x 0.984 in W x 0.307 in D |
| Number of Positions: | 9 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Color: | Black |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 7.8 mm / 0.307 inch |
| Height: | 11.3 mm / 0.445 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Tape width: | 44 mm |
| Weight: | 1.340 g |
| Width: | 25 mm / 0.984 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454814533 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1274.20 / 290Each
Typical price:$1380.40 / Each
Quantity:
WAGO 733-339/105-604/997-446 THR male header
Brand: Wago
Part Number: 733-339/105-604/997-446
Additional Description: WAGO-733-339/105-604/997-446 THR MALE HEADER; 0.8 X 0.8 MM SOLDER PIN; STRAIGHT; 100% PROTECTED AGAINST MISMATING; IN TAPE-AND-REEL PACKAGING; PIN SPACING 2.5 MM; 9-POLE; BLACK 51209799
Catalog Description: THR male header; 0.8 x 0.8 mm solder pin; straight; 100% protected against mismating; in tape-and-reel packaging; Pin spacing 2.5 mm; 9-pole; black
733-339/105-604/997-446 Item Features

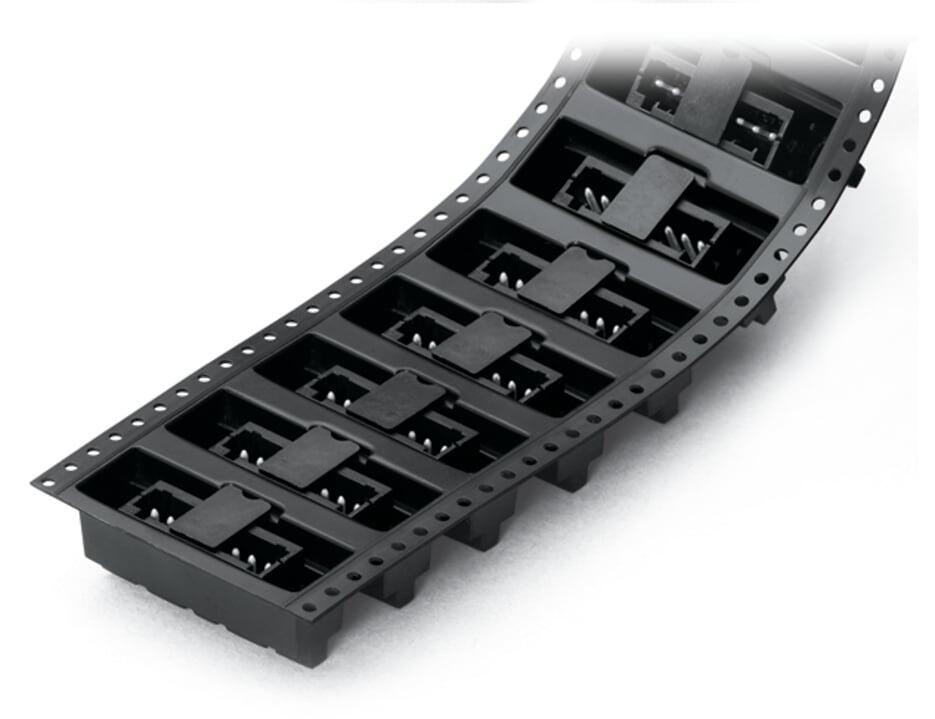

- Available in tape-and-reel packaging for automated pick-and-place PCB assembly
- Optimal thermal penetration via pin enclosure design provides lower soldering temperatures
- 100 Percent protected against mismating
- Coding option available
733-339/105-604/997-446 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2377829Part Number #733-339/105-604/997-446UNSPSC39121421UPC04045454814533
