733-362/105-604

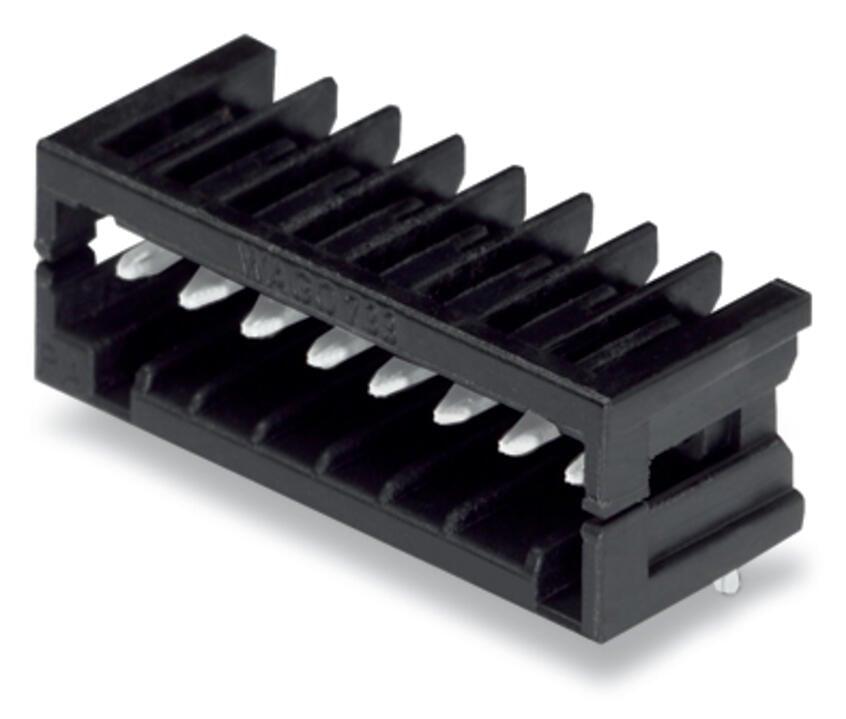

WAGO 733-362/105-604 THR male header
Part Number # 733-362/105-604
SKU # 2305699
$0.95 / Each
Typical price:$1.03 / Each
Wago 733-362/105-604 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 733-362/105-604 |
| SKU #: | 2305699 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.402 in H x 0.295 in W x 0.35 in D |
| Number of Positions: | 2 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Approvals per: | CSA, UL 1059 |
| Color: | Black |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 8.9 mm / 0.35 inch |
| Height: | 10.2 mm / 0.402 inch |
| Insulation material: | Polyphthalamide (PPA GF) |
| Material: | Polyphthalamide |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Weight: | 0.430 g |
| Width: | 7.5 mm / 0.295 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454676186 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.95 / Each
Typical price:$1.03 / Each
Quantity:
WAGO 733-362/105-604 THR male header
Brand: Wago
Part Number: 733-362/105-604
Additional Description: WAGO-733-362/105-604 THR MALE HEADER; 0.8 X 0.8 MM SOLDER PIN; ANGLED; 100% PROTECTED AGAINST MISMATING; PIN SPACING 2.5 MM; 2-POLE; BLACK 51198969
Catalog Description: THR male header; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Pin spacing 2.5 mm; 2-pole; black
733-362/105-604 Item Features
- Available in tape-and-reel packaging for automated pick-and-place PCB assembly
- Optimal thermal penetration via pin enclosure design provides lower soldering temperatures
- 100 Percent protected against mismating
- Coding option available
733-362/105-604 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2305699Part Number #733-362/105-604UNSPSC39121421UPC04045454676186
