Part Number # 733-372
SKU # 2342697
Image Disclaimers Message
733-372

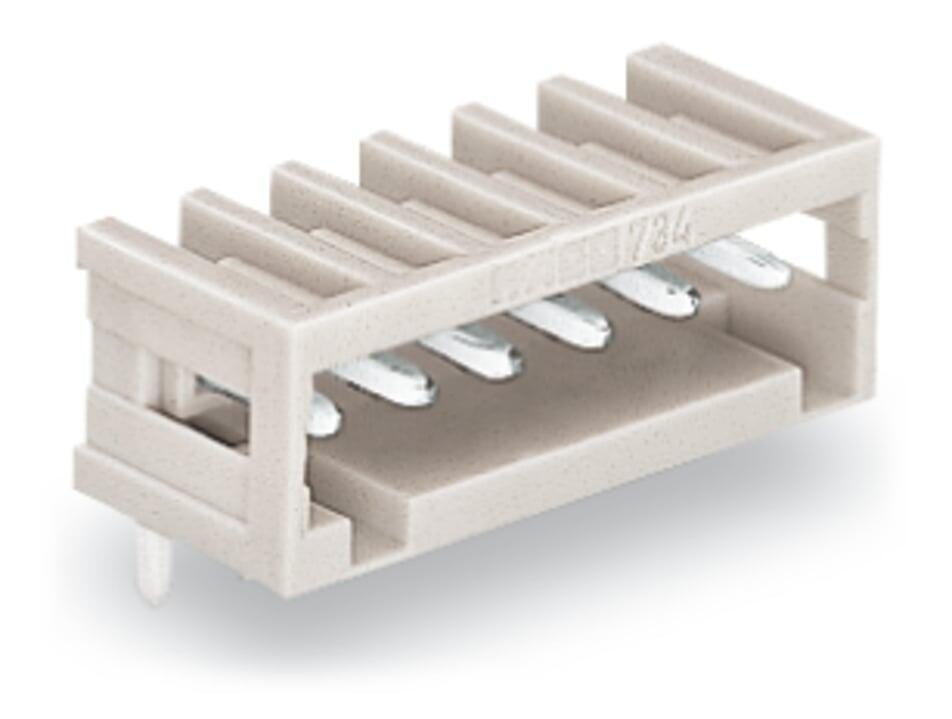

WAGO 733-372 THT male header
Part Number # 733-372
SKU # 2342697
$4.14 / Each
Typical price:$4.49 / Each
Wago 733-372 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 733-372 |
| SKU #: | 2342697 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.453 in H x 1.28 in W x 0.35 in D |
| Number of Positions: | 12 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 8.9 mm / 0.35 inch |
| Height: | 11.5 mm / 0.453 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Weight: | 1.842 g |
| Width: | 32.5 mm / 1.28 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918974486 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.14 / Each
Typical price:$4.49 / Each
Quantity:
WAGO 733-372 THT male header
Brand: Wago
Part Number: 733-372
Additional Description: WAGO-733-372 THT MALE HEADER; 0.8 X 0.8 MM SOLDER PIN; ANGLED; 100% PROTECTED AGAINST MISMATING; PIN SPACING 2.5 MM; 12-POLE; LIGHT GRAY 51154729
Catalog Description: THT male header; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Pin spacing 2.5 mm; 12-pole; light gray
733-372 Item Features
- 100 Percent protected against mismating, only mating halves with the same pole number can be connected
- Coding option available
733-372 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2342697Part Number #733-372UNSPSC39121421UPC04044918974486
