Brand: Wago

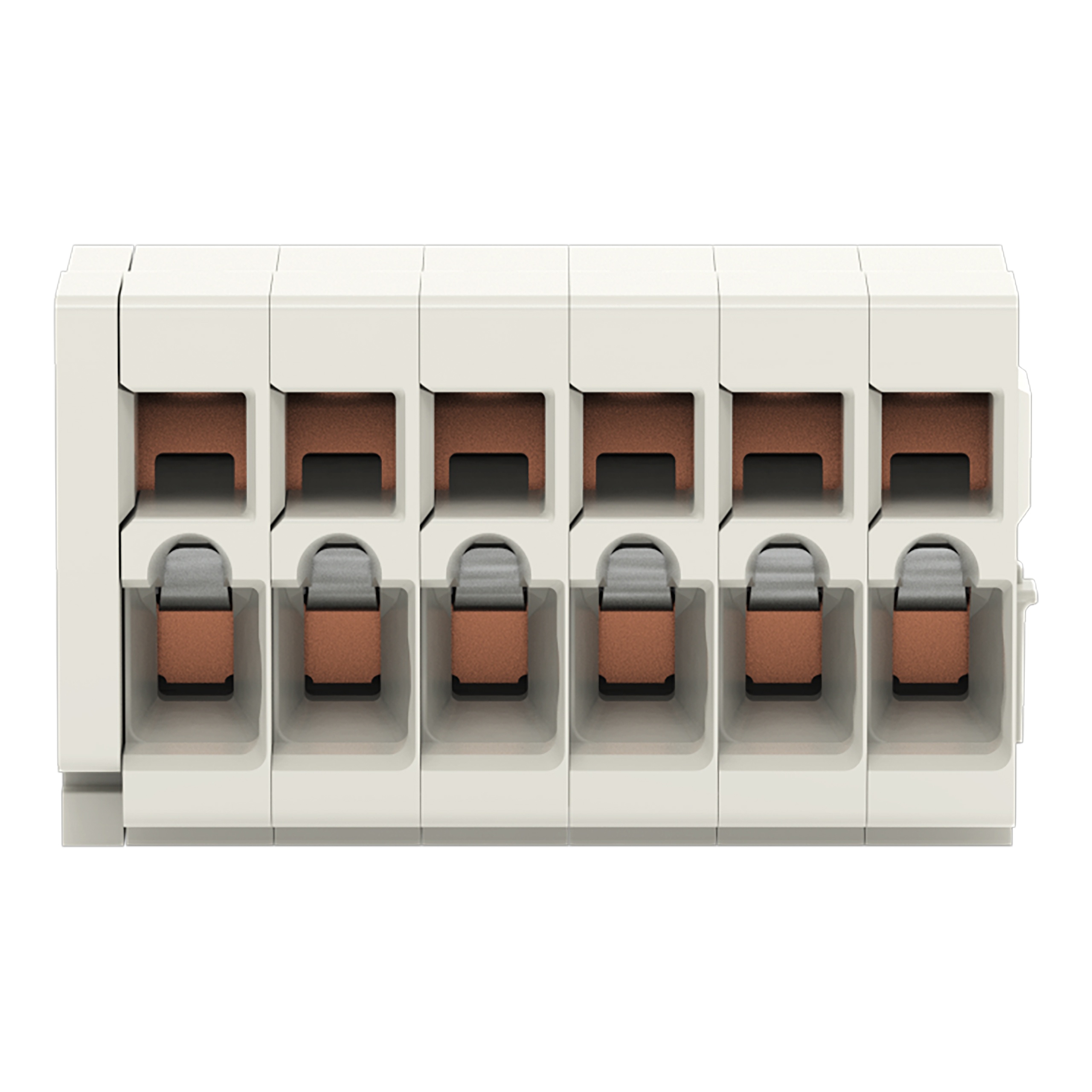

WAGO 734-106 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 734-106 1-conductor female plug
Brand: Wago
WAGO 734-106 1-conductor female plug
Part #:734-106
SKU #: 2155895
$5.29/EA
Key Features
Part #:734-106
SKU #: 2155895
Brand: Wago
Amperage Rating: 10 A
Dimensions: 0.528 in H x 0.913 in W x 0.732 in D, 0.528�in H x 0.913�in W x 0.732�in D
Number of Poles: 6
Power Rating: 2.5 kV
Series: 734
$5.29/EA
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Strain relief plates and housings for field assembly
- 100% protected against mismating
- Coding option available
Specifications
Brand: Wago
Amperage Rating: 10 A
Dimensions: 0.528 in H x 0.913 in W x 0.732 in D, 0.528�in H x 0.913�in W x 0.732�in D
Number of Poles: 6
Power Rating: 2.5 kV
Series: 734
Spacing: 3.5 mm
Temperature Rating (Degrees F): -60 to +100 deg C
Terminal Type: Cage
Type: 1-Conductor
Voltage Rating: 160 V
Wire Size: 28 to 14 AWG
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Light gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connection type: Female Socket
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 18.6 mm / 0.732 inch
Height: 13.4 mm / 0.528 inch
Insulation material: Polyamide (PA66)
Material: Polyamide (PA66)
Mounting type: DIN Rail
Number of connection types: 1
Rated current: 0.416666666666667
Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
Total number of connection points: 6
Weight: 4.669 g
Width: 23.2 mm / 0.913 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121421
UPC: 04044918493017
Item Features
Item FeaturesRoHS Compliant
