Part Number # 734-163
SKU # 2318076
Image Disclaimers Message
734-163

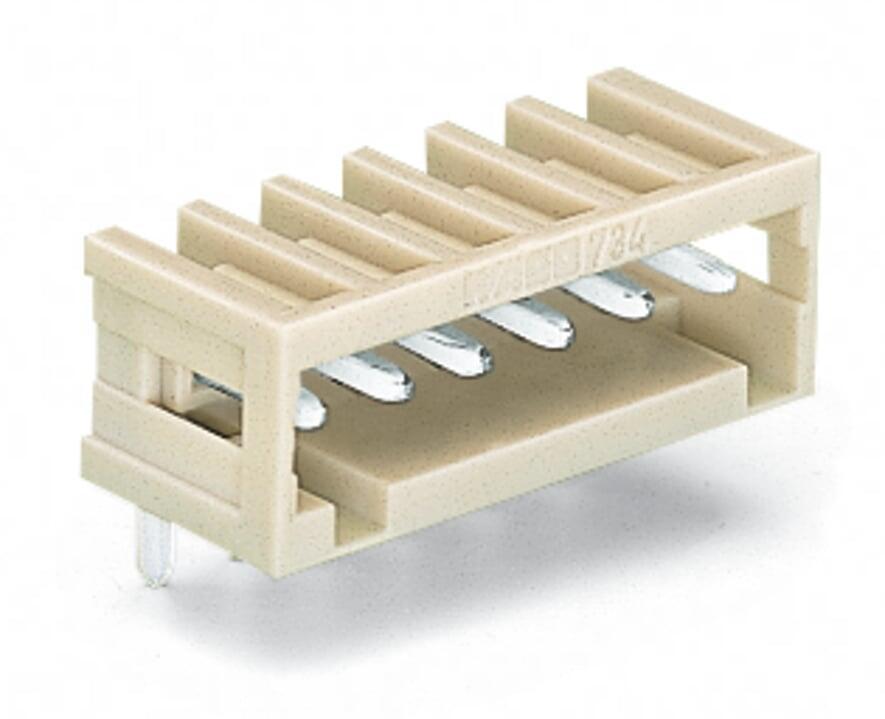

WAGO 734-163 THT male header
Part Number # 734-163
SKU # 2318076
$1.11 / Each
Typical price:$1.20 / Each
Wago 734-163 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 734-163 |
| SKU #: | 2318076 |
| Amperage Rating: | 10 A |
| Dimensions: | 0.484 in H x 0.508 in W x 0.406 in D |
| Number of Positions: | 3 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 10.3 mm / 0.406 inch |
| Height: | 12.3 mm / 0.484 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Weight: | 0.876 g |
| Width: | 12.9 mm / 0.508 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918872232 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.11 / Each
Typical price:$1.20 / Each
Quantity:
WAGO 734-163 THT male header
Brand: Wago
Part Number: 734-163
Additional Description: WAGO-734-163 THT MALE HEADER; 1.0 X 1.0 MM SOLDER PIN; ANGLED; 100% PROTECTED AGAINST MISMATING; PIN SPACING 3.5 MM; 3-POLE; LIGHT GRAY 51149768 SOLDER PIN; ANGLED; 100% PROTECTED MM; 3-POLE; LIGHT GRAY 51149768
Catalog Description: THT male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.5 mm; 3-pole; light gray
734-163 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- 100 Percent protected against mismating, only mating halves with the same number of poles can be connected together
- Coding option available
734-163 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2318076Part Number #734-163UNSPSC39121421UPC04044918872232
