Brand: Wago

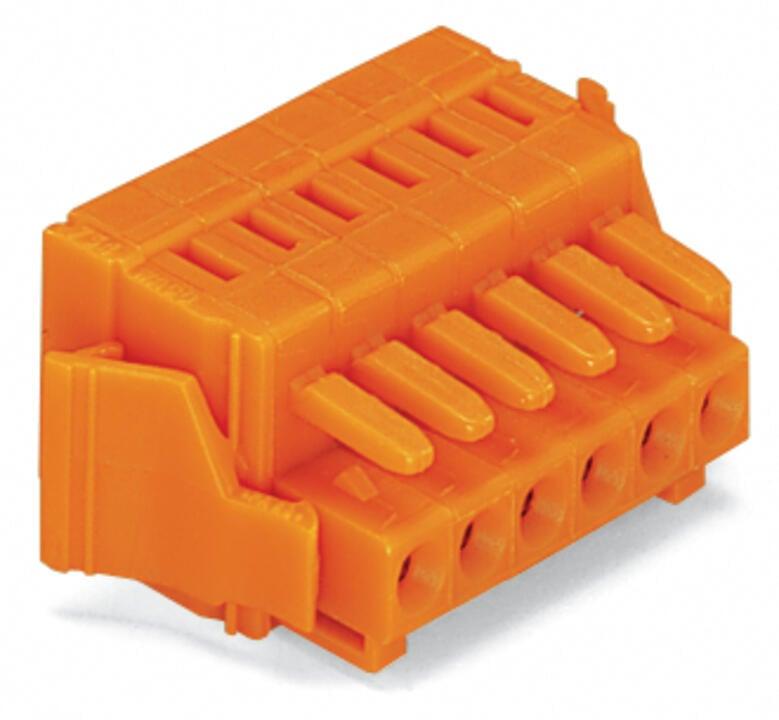

WAGO 734-205/037-000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 734-205/037-000 1-conductor female plug
Brand: Wago
WAGO 734-205/037-000 1-conductor female plug
Part #:734-205/037-000
SKU #: 2299285
$5.07/EA
Key Features
Part #:734-205/037-000
SKU #: 2299285
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Orange
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$5.07/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Orange
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 18.6 mm / 0.732 inch
Height: 13.4 mm / 0.528 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 0.416666666666667
Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
Total number of connection points: 5
Weight: 4.753 g
Width: 30.85 mm / 1.215 inch
UNSPSC: 39121421
UPC: 04044918497398
WAGO 734-205/037-000 1-conductor female plug
Additional Description: WAGO-734-205/037-000 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; LOCKING LEVER; 1.5 MM ; PIN SPACING 3.81 MM; 5-POLE; 1,50 MM ; ORANGE 51130612
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 1.5 mm²; Pin spacing 3.81 mm; 5-pole; 100% protected against mismating; Lateral locking levers; 1,50 mm²; orange
