734-235

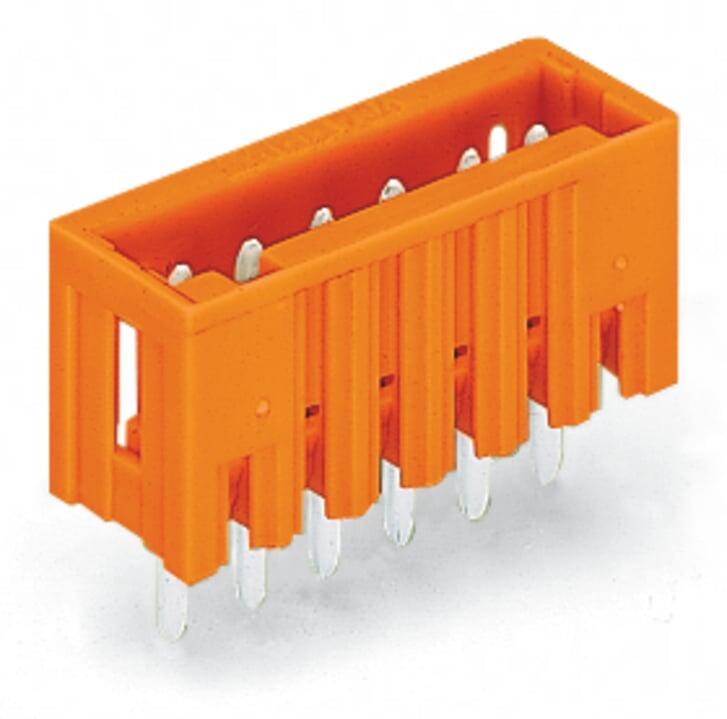

WAGO 734-235 THT male header
Part Number # 734-235
SKU # 2355571
$1.87 / Each
Typical price:$2.03 / Each
Wago 734-235 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 734-235 |
| SKU #: | 2355571 |
| Amperage Rating: | 10 A |
| Dimensions: | 0.583 in H x 0.832 in W x 0.335 in D |
| Number of Positions: | 5 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Connector (connection type): | For PCB |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 8.5 mm / 0.335 inch |
| Height: | 14.8 mm / 0.583 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Weight: | 1.290 g |
| Width: | 21.14 mm / 0.832 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918847896 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.87 / Each
Typical price:$2.03 / Each
Quantity:
WAGO 734-235 THT male header
Brand: Wago
Part Number: 734-235
Additional Description: WAGO-734-235 THT MALE HEADER; 1.0 X 1.0 MM SOLDER PIN; STRAIGHT; 100% PROTECTED AGAINST MISMATING; PIN SPACING 3.81 MM; 5-POLE; ORANGE 51148142 SOLDER PIN; STRAIGHT; 100% SPACING 3.81 MM; 5-POLE; ORANGE 51148142
Catalog Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 3.81 mm; 5-pole; orange
734-235 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- 100 Percent protected against mismating, only mating halves with the same number of poles can be connected together
- Coding option available
734-235 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2355571Part Number #734-235UNSPSC39121421UPC04044918847896
