Part Number # 734-306
SKU # 1027403
Image Disclaimers Message
734-306

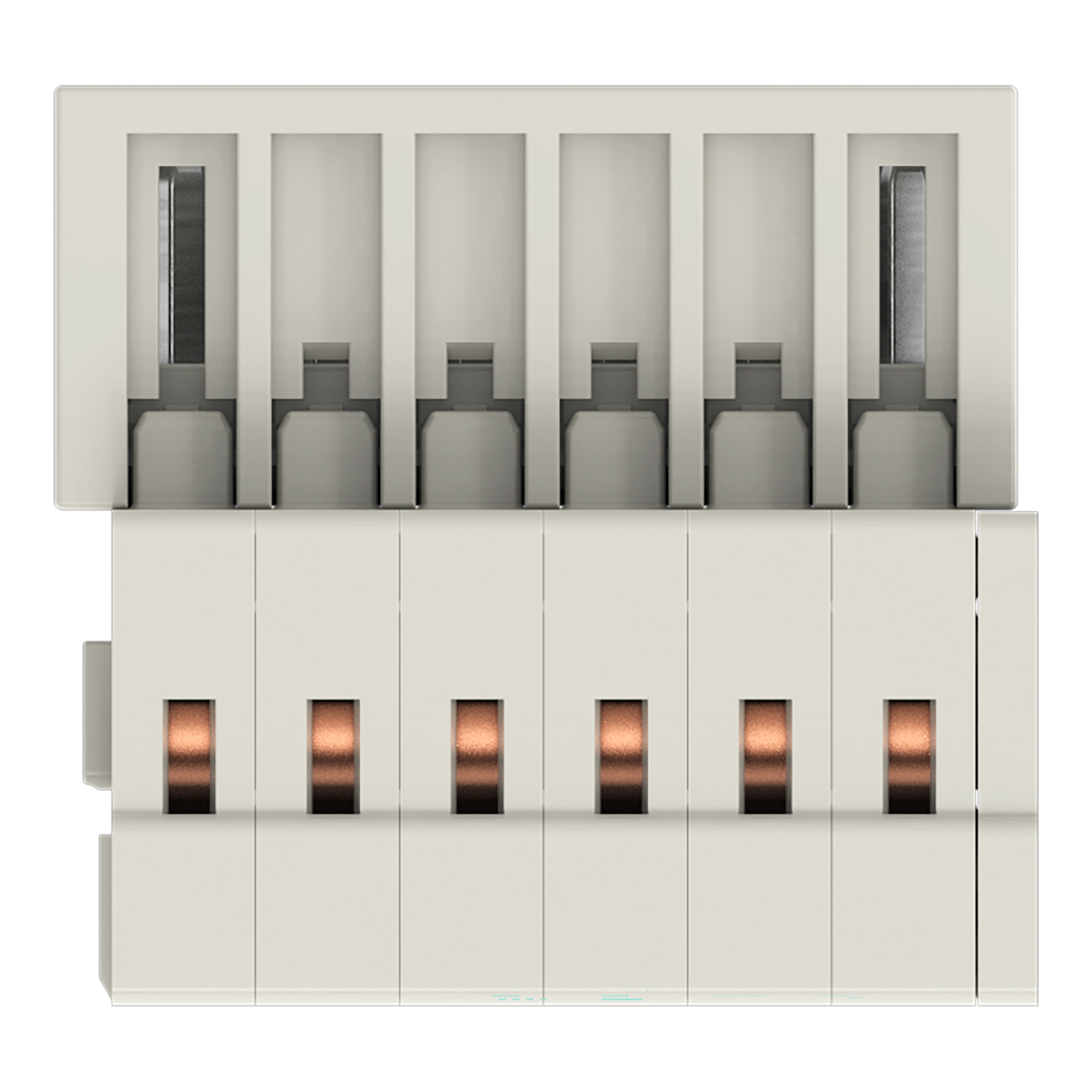

WAGO 734-306 1-conductor male connector
Part Number # 734-306
SKU # 1027403
$6.49 / Each
Typical price:$7.03 / Each
Wago 734-306 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 734-306 |
| SKU #: | 1027403 |
| Amperage Rating: | 10 A |
| Dimensions: | 0.528 in H x 0.921 in W x 0.878 in D |
| Number of Poles: | 6 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 14 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 22.3 mm / 0.878 inch |
| Height: | 13.4 mm / 0.528 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Total number of connection points: | 6 |
| Weight: | 5.052 g |
| Width: | 23.4 mm / 0.921 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918513586 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.49 / Each
Typical price:$7.03 / Each
Quantity:
WAGO 734-306 1-conductor male connector
Brand: Wago
Part Number: 734-306
Additional Description: WAGO-734-306 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; 1.5 MM; PIN SPACING 3.5 MM; 6-POLE; 1,50 MM; LIGHT GRAY 51131788 PROTECTED AGAINST MISMATING; 1.5 MM ; PIN SPACING 3.5 MM; 6-POLE; 1,50 MM ; LIGHT GRAY 51131788
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 6-pole; 100% protected against mismating; 1,50 mm²; light gray
734-306 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuationStrain relief plates and housings for factory and field assembly
- 100 Percent protected against mismating
- Coding option available
734-306 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #1027403Part Number #734-306UNSPSC39121421UPC04044918513586
