Brand: Wago

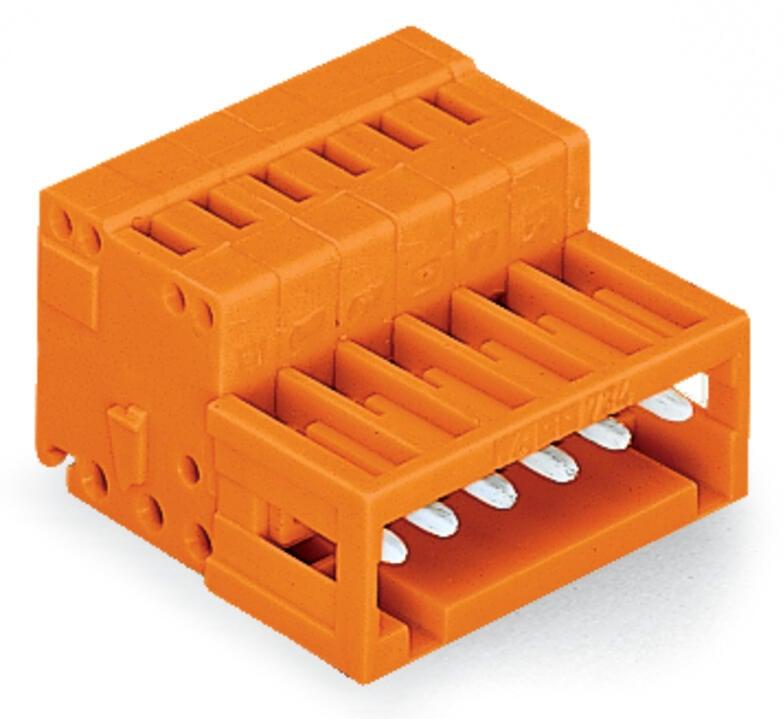

WAGO 734-338 1-conductor male connector
Image Disclaimers Message
Brand: Wago
WAGO 734-338 1-conductor male connector
Brand: Wago
WAGO 734-338 1-conductor male connector
Part #:734-338
SKU #: 2234392
$7.15/EA
Key Features
Part #:734-338
SKU #: 2234392
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Orange
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$7.15/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Orange
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: PL
Depth: 22.3 mm / 0.878 inch
Height: 13.4 mm / 0.528 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 0.416666666666667
Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
Total number of connection points: 8
Weight: 7.136 g
Width: 32.57 mm / 1.282 inch
UNSPSC: 39121421
UPC: 04044918513913
WAGO 734-338 1-conductor male connector
Additional Description: WAGO-734-338 1-CONDUCTOR MALE CONNECTOR; 100% PROTECTED AGAINST MISMATING; 1.5 MM ; PIN SPACING 3.81 MM; 8-POLE; 1,50 MM ; ORANGE 51131821
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 1.5 mm²; Pin spacing 3.81 mm; 8-pole; 100% protected against mismating; 1,50 mm²; orange
