734-366

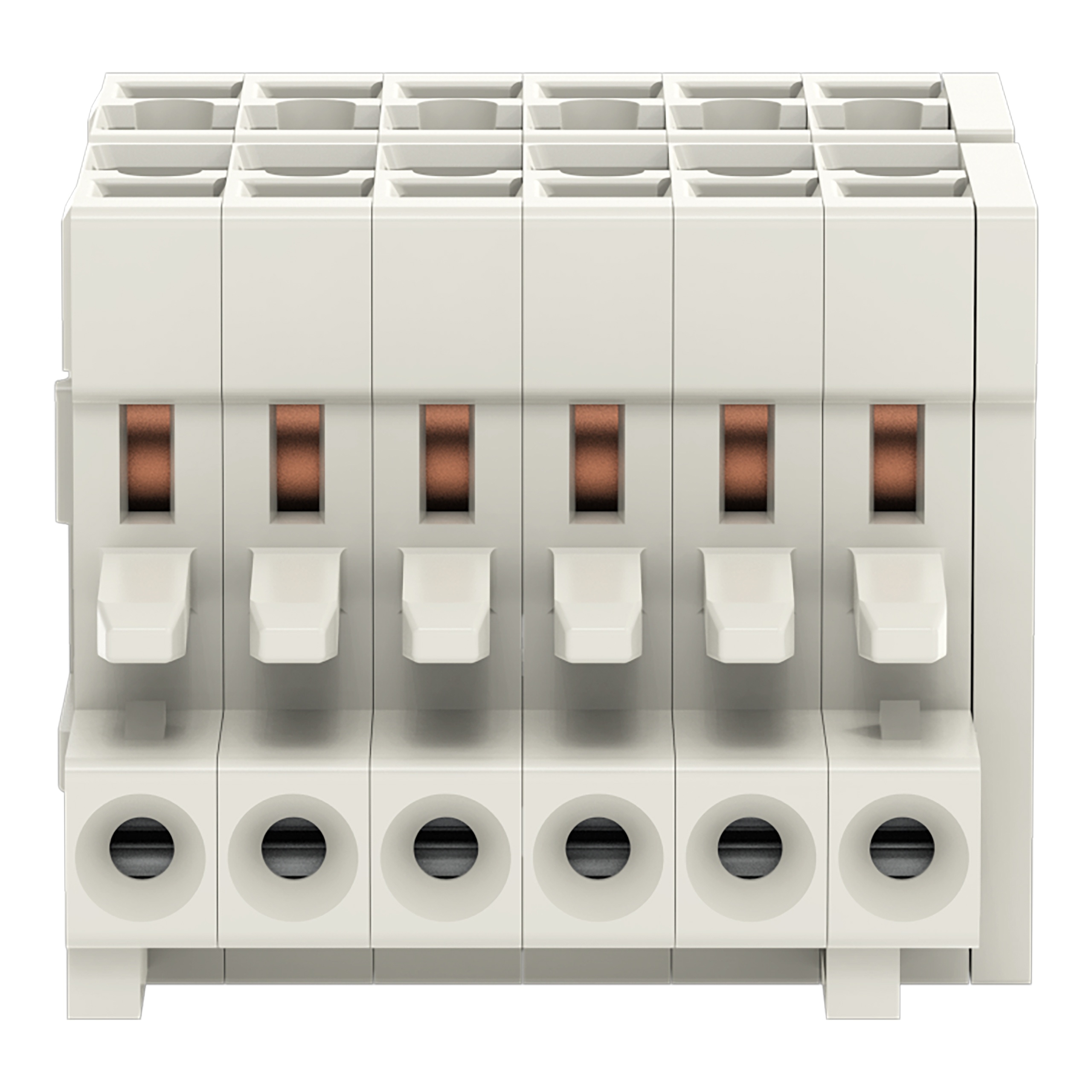

WAGO 734-366 2-conductor combi strip
Part Number # 734-366
SKU # 2208539
$18.76 / Each
Typical price:$20.32 / Each
Wago 734-366 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 734-366 |
| SKU #: | 2208539 |
| Conductor Size: | 28 to 14 AWG |
| Dimensions: | 0.728 in H x 0.939 in W x 1.61 in D |
| Specifications: | 12 Clamping Unit |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | PL |
| Depth: | 40.9 mm / 1.61 inch |
| Height: | 18.5 mm / 0.728 inch |
| Insulation material: | Polyamide (PA66) |
| Length: | 0.24 to 0.28 in |
| Number of connection types: | 1 |
| Rated current: | 0.416666666666667 |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Total number of connection points: | 12 |
| Weight: | 14.551 g |
| Width: | 23.85 mm / 0.939 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454214531 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$18.76 / Each
Typical price:$20.32 / Each
Quantity:
WAGO 734-366 2-conductor combi strip
Brand: Wago
Part Number: 734-366
Additional Description: WAGO-734-366 2-CONDUCTOR COMBI STRIP; 100% PROTECTED AGAINST MISMATING; 1.5 MM; PIN SPACING 3.5 MM; 6-POLE; 1,50 MM; LIGHT GRAY 51169791 PROTECTED AGAINST MISMATING; 1.5 MM ; PIN SPACING 3.5 MM; 6-POLE; 1,50 MM ; LIGHT GRAY L-GREY 51169791
Catalog Description: 2-conductor combi strip; 100% protected against mismating; 1.5 mm²; 6-pole; Pin spacing 3.5 mm; light gray
734-366 Item Features
- Universal connection for all conductor types
- Multiply potentials
- Strain relief plates for factory and field assembly
- Supply via pin-contact side
- Combi strips may be connected to multiply outputs
- 100 Percent protected against mismating
- Coding option available
734-366 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2208539Part Number #734-366UNSPSC39121421UPC04045454214531
