737-208

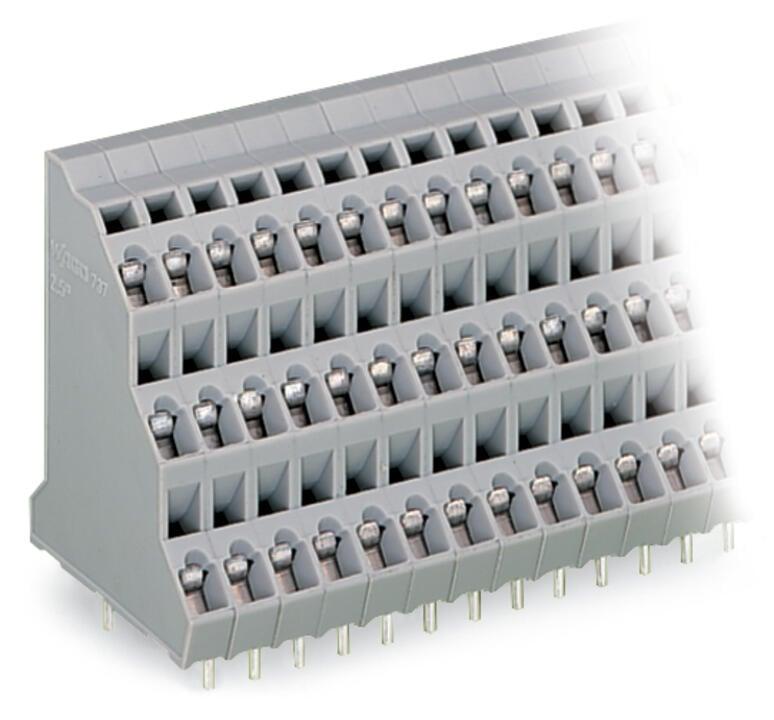

WAGO 737-208 Triple-deck PCB terminal block
Part Number # 737-208
SKU # 2227751
$11.55 / Each
Typical price:$12.51 / Each
Wago 737-208 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 737-208 |
| SKU #: | 2227751 |
| Amperage Rating: | 21 A |
| Dimensions: | 1.732 in H x 1.614 in W x 1.22 in D |
| Number of Poles: | 24 |
| Spacing: | 0.197 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 31 mm / 1.22 inch |
| Height: | 44 mm / 1.732 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 21 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 24 |
| Weight: | 33.771 g |
| Width: | 41 mm / 1.614 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454022754 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.55 / Each
Typical price:$12.51 / Each
Quantity:
WAGO 737-208 Triple-deck PCB terminal block
Brand: Wago
Part Number: 737-208
Additional Description: WAGO-737-208 TRIPLE-DECK PCB TERMINAL BLOCK; 2.5 MM ; PIN SPACING 5 MM; 3 X 8-POLE; CAGE CLAMP ; 2,50 MM ; GRAY 51157169
Catalog Description: Triple-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 24-pole; CAGE CLAMP®; 2,50 mm²; gray
737-208 Item Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- High-density, triple-deck design for space-efficient wiring of multiple conductors in confined areas
- Custom marking for all termination levels
737-208 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2227751Part Number #737-208UNSPSC39121421UPC04045454022754
