Part Number # 742-106
SKU # 2239862
Image Disclaimers Message
742-106

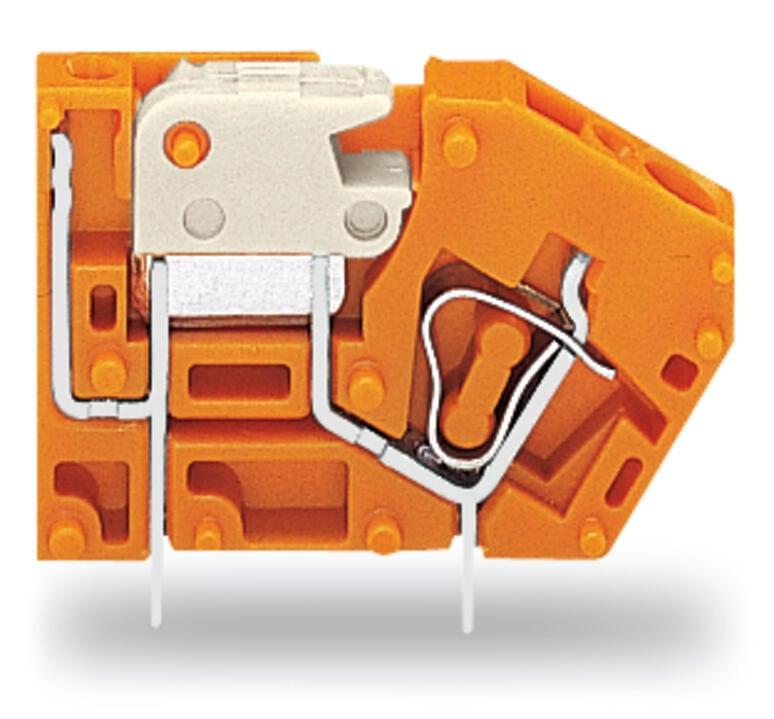

WAGO 742-106 Stackable PCB terminal block
Part Number # 742-106
SKU # 2239862
$311.04 / 96Each
Typical price:$336.96 / Each
Wago 742-106 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 742-106 |
| SKU #: | 2239862 |
| Amperage Rating: | 16 A |
| Dimensions: | 1.071 in H x 0.28 in W x 1.366 in D |
| Number of Poles: | 1 |
| Spacing: | 0.2 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 34.7 mm / 1.366 inch |
| Height: | 27.2 mm / 1.071 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 1 |
| Weight: | 4.460 g |
| Width: | 7.1 mm / 0.28 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04045454232375 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$311.04 / 96Each
Typical price:$336.96 / Each
Quantity:
WAGO 742-106 Stackable PCB terminal block
Brand: Wago
Part Number: 742-106
Additional Description: WAGO-742-106 STACKABLE PCB TERMINAL BLOCK; WITH KNIFE DISCONNECT; 2.5 MM; PIN SPACING 5.08 MM; 1-POLE; CAGE CLAMP; 2,50 MM; ORANGE 51170852 KNIFE DISCONNECT; 2.5 MM ; PIN CLAMP ; 2,50 MM ; ORANGE ORNG 51170852
Catalog Description: Stackable PCB terminal block; with knife disconnect; 2.5 mm²; Pin spacing 5.08 mm; 1-pole; CAGE CLAMP®; 2,50 mm²; orange
742-106 Item Features
- Modular PCB terminal blocks with screwdriver-actuated CAGE CLAMP connection
- Power circuit disconnection via knife disconnect, e.g., for regular testing and measuring
- Test sockets on both sides of knife disconnect for 2.0 mm or 2.3 mm - test plugs
- 2- and 3-conductor PCB terminal blocks for distributing potentials independently of PCB
- Versions with removable knife disconnects available upon request
742-106 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2239862Part Number #742-106UNSPSC39121421UPC04045454232375
