Part Number # 745-811
SKU # 2125817
Image Disclaimers Message
745-811

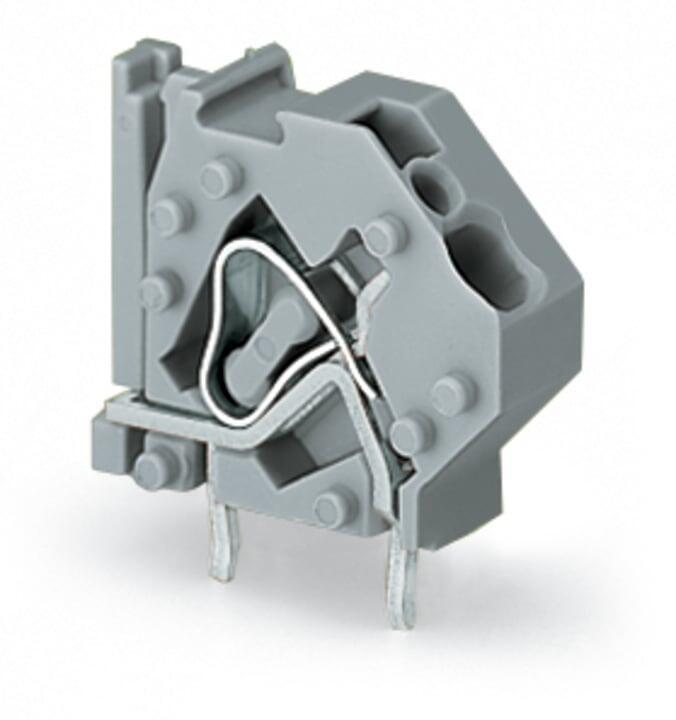

WAGO 745-811 Stackable PCB terminal block
Part Number # 745-811
SKU # 2125817
$42.50 / 50Each
Typical price:$46.00 / Each
Wago 745-811 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 745-811 |
| SKU #: | 2125817 |
| Amperage Rating: | 32 A |
| Dimensions: | 0.906 in H x 0.354 in W x 0.902 in D |
| Number of Poles: | 1 |
| Spacing: | 0.295 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 22.9 mm / 0.902 inch |
| Height: | 23 mm / 0.906 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 1 |
| Weight: | 2.527 g |
| Width: | 9 mm / 0.354 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918300278 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$42.50 / 50Each
Typical price:$46.00 / Each
Quantity:
WAGO 745-811 Stackable PCB terminal block
Brand: Wago
Part Number: 745-811
Additional Description: WAGO-745-811 STACKABLE PCB TERMINAL BLOCK; 4 MM ; PIN SPACING 7.5 MM; 1-POLE; CAGE CLAMP ; COMMONING OPTION; 4,00 MM ; GRAY 51113828
Catalog Description: Stackable PCB terminal block; 4 mm²; Pin spacing 7.5 mm; 1-pole; CAGE CLAMP®; commoning option; 4,00 mm²; gray
745-811 Item Features
- Modular terminal blocks with screwdriver-actuated CAGE CLAMP for custom terminal strip assemblies
- Common and distribute potentials via comb-style jumper bars
- Double solder pins for high mechanical stability
- Integrated testing tap
- Marker slot for Mini-WSB markers
745-811 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|Ex approvalSKU #2125817Part Number #745-811UNSPSC39121421UPC04044918300278
