Part Number # 745-857/006-000
SKU # 2423220
Brand: Wago
745-857/006-000
WAGO 745-857/006-000 Electrical Connector Assembly
Part Number # 745-857/006-000
SKU # 2423220
$171.00 / 100Each
Typical price:$185.00 / Each
Wago 745-857/006-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 745-857/006-000 |
| SKU #: | 2423220 |
| Amperage Rating: | 76 A |
| Dimensions: | 1.319 in H x 0.453 in W x 1.315 in D |
| Number of Poles: | 1 |
| Spacing: | 0.39 in |
| Type: | Operating Tool |
| Wire Size: | 24 to 6 AWG |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918303163 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$171.00 / 100Each
Typical price:$185.00 / Each
Quantity:
WAGO 745-857/006-000 Electrical Connector Assembly
Brand: Wago
Part Number: 745-857/006-000
Additional Description: WAGO-745-857/006-000 STACKABLE PCB TERMINAL BLOCK; 16 MM ; PIN SPACING 10 MM; 1-POLE; CAGE CLAMP ; COMMONING OPTION; 16,00 MM ; GREEN-YELLOW 51114088
Catalog Description: Stackable PCB terminal block; 16 mm²; Pin spacing 10 mm; 1-pole; CAGE CLAMP®; commoning option; 16,00 mm²; green-yellow
745-857/006-000 Item Features
- Modular PCB terminal blocks with screwdriver-actuated CAGE CLAMP for custom PCB terminal strip assemblies
- Common and distribute potentials via comb-style jumper bars
- Four solder pins for high mechanical stability
- Integrated testing tap
- Marker slot for Mini-WSB markers
745-857/006-000 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|Ex approval|UL ListedSKU #2423220Part Number #745-857/006-000UNSPSC39121421UPC04044918303163

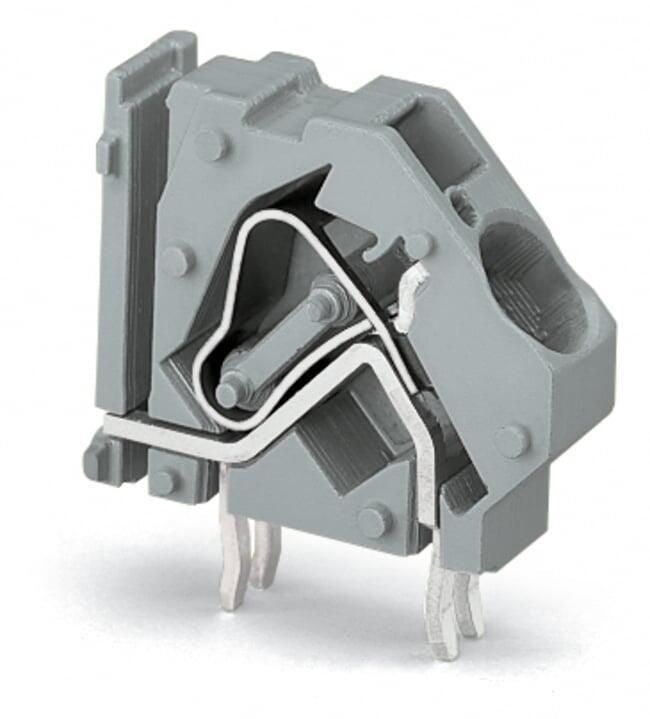

Image provided may only be a representation of final product and may include optional equipment
