Part Number # 745-884/006-000
SKU # 2423223
Image Disclaimers Message
745-884/006-000

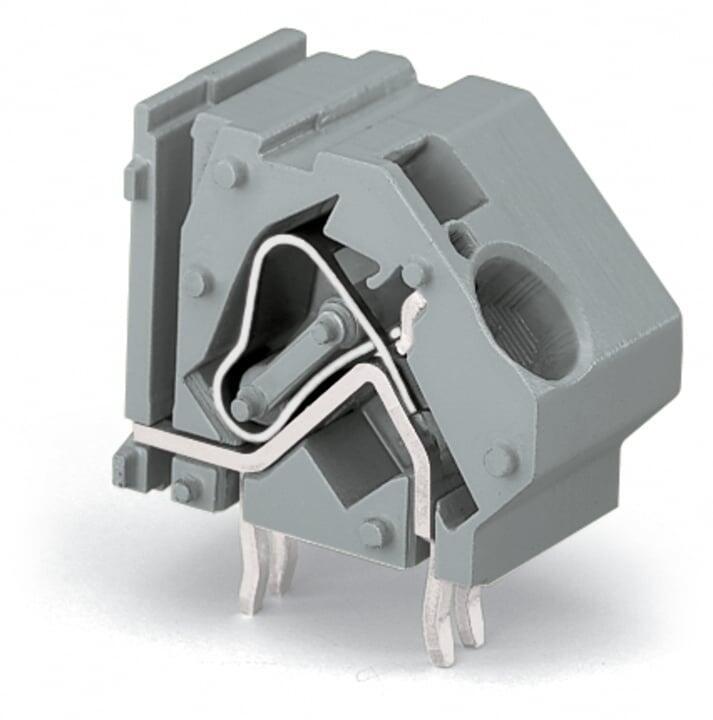

WAGO 745-884/006-000 Electrical Connector Assembly
Part Number # 745-884/006-000
SKU # 2423223
$93.50 / 50Each
Typical price:$101.50 / Each
Wago 745-884/006-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 745-884/006-000 |
| SKU #: | 2423223 |
| Amperage Rating: | 76 A |
| Dimensions: | 1.319 in H x 0.846 in W x 1.315 in D |
| Number of Poles: | 1 |
| Spacing: | 0.787 in |
| Type: | Operating Tool |
| Wire Size: | 24 to 6 AWG |
| Color: | Blue |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918303224 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93.50 / 50Each
Typical price:$101.50 / Each
Quantity:
- WAGO, 745-884/006-000, Stackable PCB Terminal Block, Operating Tool, 1000 V, 76 A, 1 Pole, 24 to 6 AWG Wire, 0.47 to 0.51 in Wire Strip Length, 0.787 in Spacing, Clamp Connection, Polyamide, Blue, 1.319 in H x 0.846 in W x 1.315 in D Dimensions
745-884/006-000 Application
Suitable for Ex i applications745-884/006-000 Item Features
- Modular terminal blocks with screwdriver-actuated CAGE CLAMP for custom terminal strip assemblies
- Common and distribute potentials via comb-style jumper bars
- Four solder pins for high mechanical stability
- Integrated testing tap
- Marker slot for Mini-WSB markers
745-884/006-000 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|Ex approval|UL ListedSKU #2423223Part Number #745-884/006-000UNSPSC39121421UPC04044918303224
