Brand: Wago

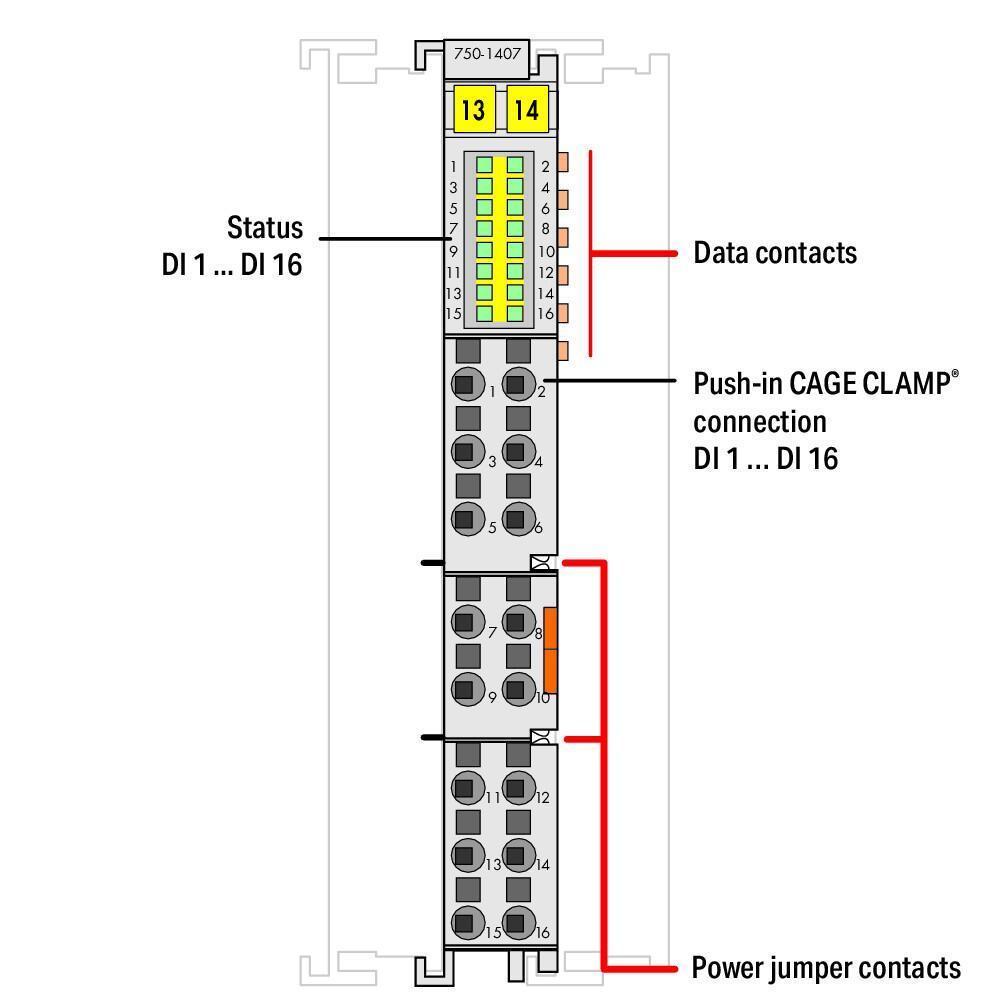

WAGO 750-1407 16-channel digital input
Image Disclaimers Message
Brand: Wago
WAGO 750-1407 16-channel digital input
Brand: Wago
WAGO 750-1407 16-channel digital input
Part #:750-1407
SKU #: 2187698
$229.32/EA
Key Features
Part #:750-1407
SKU #: 2187698
Brand: Wago
Color: Light gray
Connection technology: 16 x Push-in CAGE CLAMP®
Country of origin: DE
Depth: 69 mm / 2.717 inch
Height: 100 mm / 3.937 inch
$229.32/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 16 x Push-in CAGE CLAMP®
Country of origin: DE
Depth: 69 mm / 2.717 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Input data width (internal) (max.): 16 bit
Isolation: 500 V system/field
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of digital inputs: 16
Protection type: IP20
Sensor connection: 16 x (1-wire)
Signal type: Voltage
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Total number of channels (module): 16
Vibration resistance: 4g per IEC 60068-2-6
Weight: 47.000 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454905583
WAGO 750-1407 16-channel digital input
Additional Description: WAGO-750-1407 16-CHANNEL DIGITAL 16-CHANNEL DIGITAL INPUT; 24 VDC; 3 MS; LOW-SIDE SWITCHING; LIGHT GRAY 07501407
Catalog Description: 16-channel digital input; 24 VDC; 3 ms; Low-side switching
