Part Number # 750-1418
SKU # 2256966
Image Disclaimers Message
750-1418

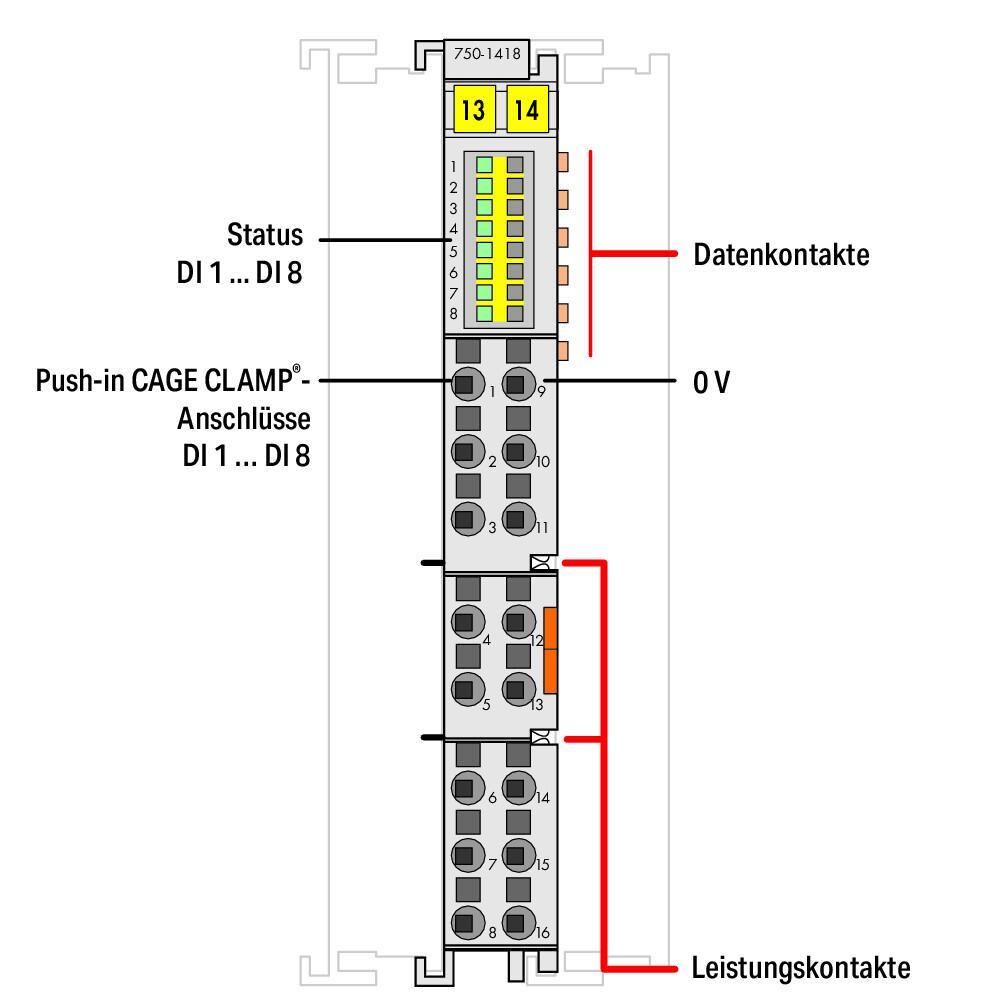

WAGO 750-1418 8-channel digital input
Part Number # 750-1418
SKU # 2256966
$144.06 / Each
Wago 750-1418 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-1418 |
| SKU #: | 2256966 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.71 in D |
| Enclosure Type: | IP20 |
| Input Type: | Digital |
| Type: | 8-Channel |
| Connection technology: | 16 x Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69 mm / 2.717 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Input data width (internal) (max.): | 8 bit |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of digital inputs: | 8 |
| Protection type: | IP20 |
| Sensor connection: | 8 x (2-wire) |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Supply voltage (sensor): | DC 24 V |
| Total number of channels (module): | 8 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 44.000 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04050821131410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$144.06 / Each
Quantity:
WAGO 750-1418 8-channel digital input
Brand: Wago
Part Number: 750-1418
Additional Description: WAGO-750-1418 8-CHANNEL DIGITAL INPUT; 24 VDC; 0.2 MS; LOW-SIDE SWITCHING; 2-CONDUCTOR CONNECTION; - 07501418
Catalog Description: 8-channel digital input; 24 VDC; 0.2 ms; Low-side switching; 2-conductor connection
750-1418 Application
For marine applications750-1418 Standards
RoHS Compliant|CE|IP20SKU #2256966Part Number #750-1418UNSPSC32151702UPC04050821131410
