Part Number # 750-1425
SKU # 2300100
Image Disclaimers Message
750-1425

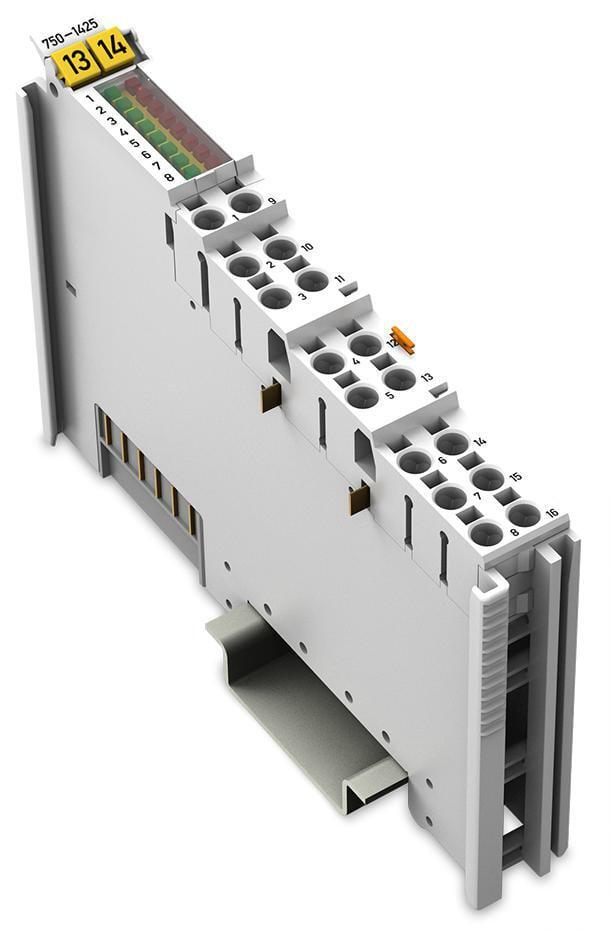

WAGO 750-1425 8-channel digital input
Part Number # 750-1425
SKU # 2300100
$277.54 / Each
Wago 750-1425 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-1425 |
| SKU #: | 2300100 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.71 in D |
| Enclosure Type: | IP20 |
| Input Type: | Digital |
| Type: | 8-Channel |
| Color: | Light gray |
| Connection technology: | 16 x Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69 mm / 2.717 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Input data width (internal) (max.): | 16 bit |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of digital inputs: | 8 |
| Output current per channel: | 0.001 A |
| Power consumption Pmax.: | 260 mW |
| Protection type: | IP20 |
| Sensor connection: | 8 x (2-wire) |
| Signal type: | PTC, thermistor per DIN 44081/44082 |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of channels (module): | 8 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 46.500 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04050821880745 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$277.54 / Each
Quantity:
WAGO 750-1425 8-channel digital input
Brand: Wago
Part Number: 750-1425
Additional Description: WAGO-750-1425 8-CHANNEL DIGITAL INPUT; PTC; LIGHT GRAY 7501425
Catalog Description: 8-channel digital input; PTC
750-1425 Application
For marine applications750-1425 Standards
DIN 44082|DIN 44081|RoHS Compliant|CE|IP20SKU #2300100Part Number #750-1425UNSPSC32151702UPC04050821880745
