Part Number # 750-1516
SKU # 2352312
Image Disclaimers Message
Brand: Wago
750-1516

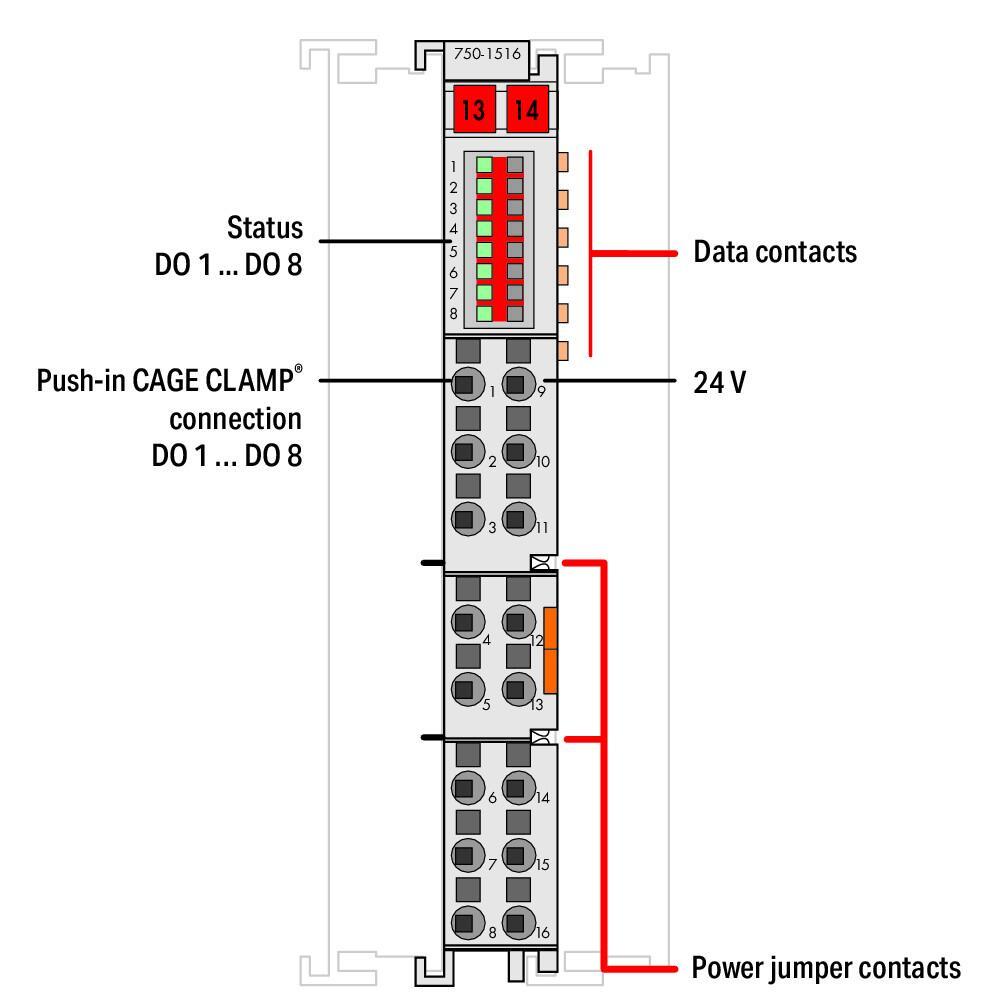

WAGO 750-1516 8-channel digital output
Part Number # 750-1516
SKU # 2352312
$161.00 / Each
Wago 750-1516 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-1516 |
| SKU #: | 2352312 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.71 in D |
| Enclosure Type: | IP20 |
| Type: | 8-Channel |
| Connection technology: | 16 x Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69 mm / 2.717 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Load type: | Resistive, inductive, lamp load |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of digital outputs: | 8 |
| Output characteristic: | Low-side switching |
| Output current: | Short-circuit-protected |
| Output current per channel: | 0.5 A |
| Output type: | Digital |
| Protection type: | IP20 |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Switching frequency (max.): | 1 kHz |
| Total number of channels (module): | 8 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 45.951 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04050821085652 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$161.00 / Each
Quantity:
WAGO 750-1516 8-channel digital output
Brand: Wago
Part Number: 750-1516
Additional Description: WAGO-750-1516 8-CHANNEL DIGITAL OUTPUT; 24 VDC; 0.5 A; LOW-SIDE SWITCHING; 2-CONDUCTOR CONNECTION; - 07501516
Catalog Description: 8-channel digital output; 24 VDC; 0.5 A; Low-side switching; 2-conductor connection
750-1516 Application
For marine applications750-1516 Standards
RoHS Compliant|CE|IP20SKU #2352312Part Number #750-1516UNSPSC32151702UPC04050821085652
