Part Number # 750-316/300-000
SKU # 2365293
Image Disclaimers Message
Brand: Wago
750-316/300-000

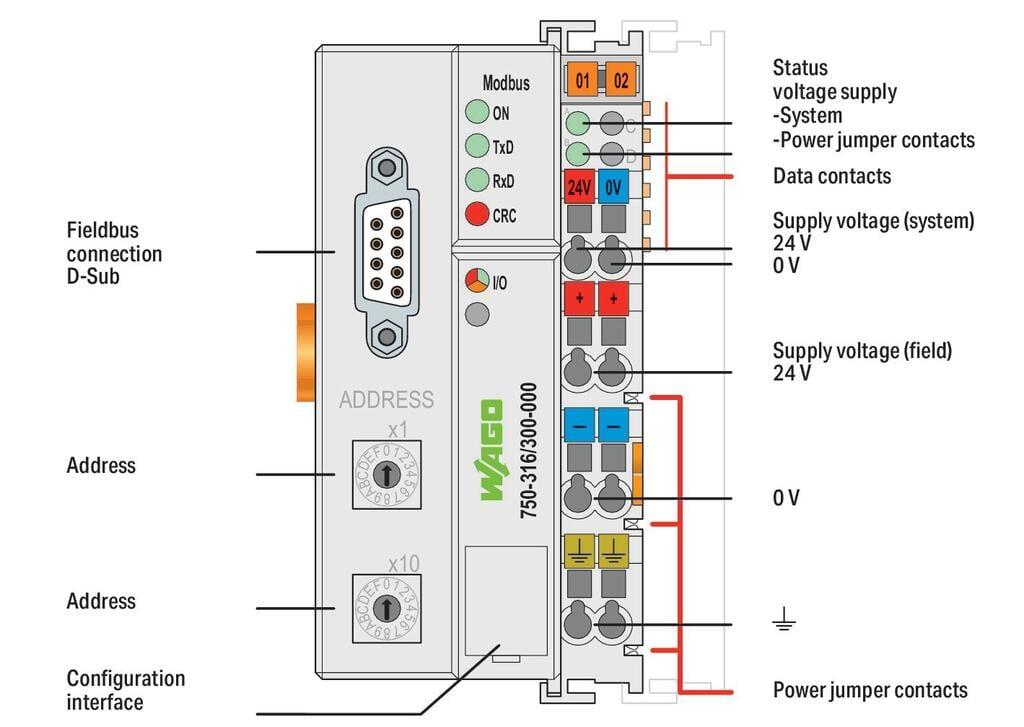

WAGO 750-316/300-000 Fieldbus Coupler MODBUS
Part Number # 750-316/300-000
SKU # 2365293
$844.46 / Each
Wago 750-316/300-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-316/300-000 |
| SKU #: | 2365293 |
| Size: | 3.937 in H x 1.988 in W x 2.799 in D |
| Baud rate: | 150 Baud … 115.2 kBd |
| Color: | Light gray |
| Communication: | Modbus RTU |
| Connection technology: | 1 x Male connector; 4-pole, 2 x CAGE CLAMP®, 6 x CAGE CLAMP®, Modbus RTU: 1 x D-sub 9 socket |
| Country of origin: | DE |
| Depth: | 71.1 mm / 2.799 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | DIN-35 rail |
| Number of fieldbus nodes on master (max.): | 247 |
| Number of I/O points: | 6000 |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 184.807 g |
| Width: | 50.5 mm / 1.988 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04055143070942 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$844.46 / Each
Quantity:
WAGO 750-316/300-000 Fieldbus Coupler MODBUS
Brand: Wago
Part Number: 750-316/300-000
Additional Description: WAGO-750-316/300-000 FIELDBUS COUPLER MODBUS; RS-232; 115,2 KBD; LIGHT GRAY 51299176
Catalog Description: Fieldbus Coupler MODBUS; RS-232; 115,2 kBd
750-316/300-000 Application
For marine applications750-316/300-000 Standards
RoHS Compliant|CE|IP20SKU #2365293Part Number #750-316/300-000UNSPSC32151603UPC04055143070942
