750-348

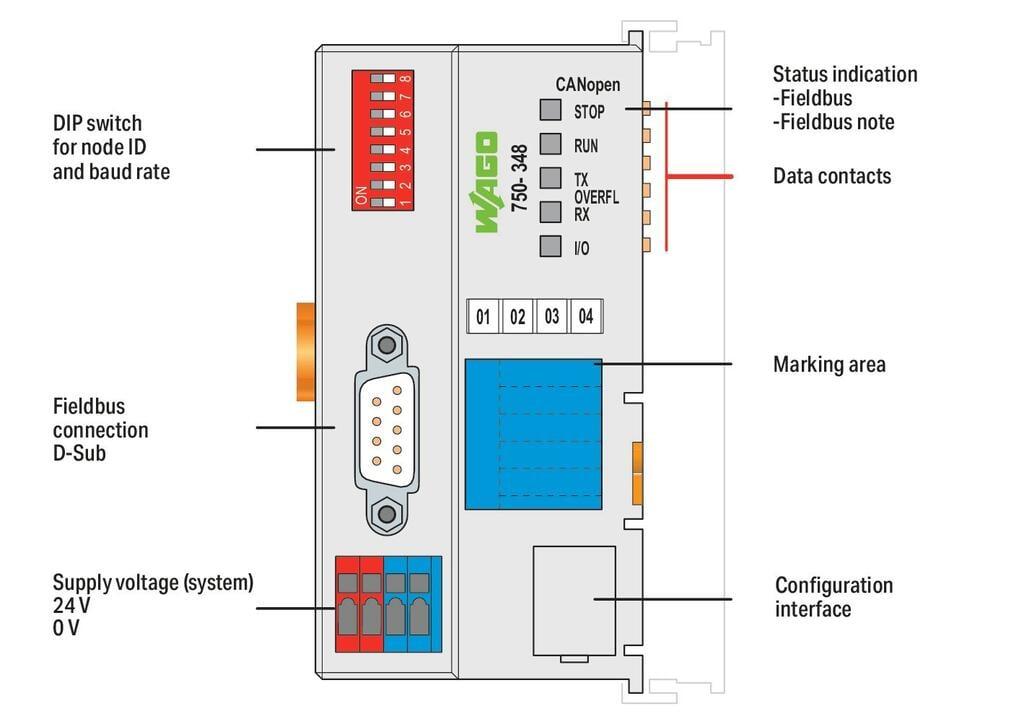

WAGO 750-348 Fieldbus Coupler CANopen
Part Number # 750-348
SKU # 2234997
$447.34 / Each
Wago 750-348 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-348 |
| SKU #: | 2234997 |
| Size: | 3.811 in H x 1.949 in W x 2.831 in D |
| Baud rate: | 10 kBd … 1 MBd |
| Color: | Light gray |
| Communication: | CANopen |
| Connection technology: | 1 x Male connector; 4-pole, 4 x CAGE CLAMP®, CANopen: 1 x D-sub 9 plug |
| Country of origin: | DE |
| Depth: | 71.9 mm / 2.831 inch |
| Height: | 96.8 mm / 3.811 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | DIN-35 rail |
| Node ID distribution: | DIP switch |
| Number of fieldbus nodes on master (max.): | 110 |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 115.000 g |
| Width: | 49.5 mm / 1.949 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454395964 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$447.34 / Each
Quantity:
WAGO 750-348 Fieldbus Coupler CANopen
Brand: Wago
Part Number: 750-348
Additional Description: WAGO-750-348 FIELDBUS COUPLER CANOPEN; D-SUB; ECO; LIGHT GRAY 51181062
Catalog Description: Fieldbus Coupler CANopen; D-Sub; ECO
750-348 Application
For marine applications750-348 Standards
RoHS Compliant|CE|IP20SKU #2234997Part Number #750-348UNSPSC32151702UPC04045454395964
