Part Number # 750-404/000-005
SKU # 2308855
Image Disclaimers Message
Brand: Wago
750-404/000-005

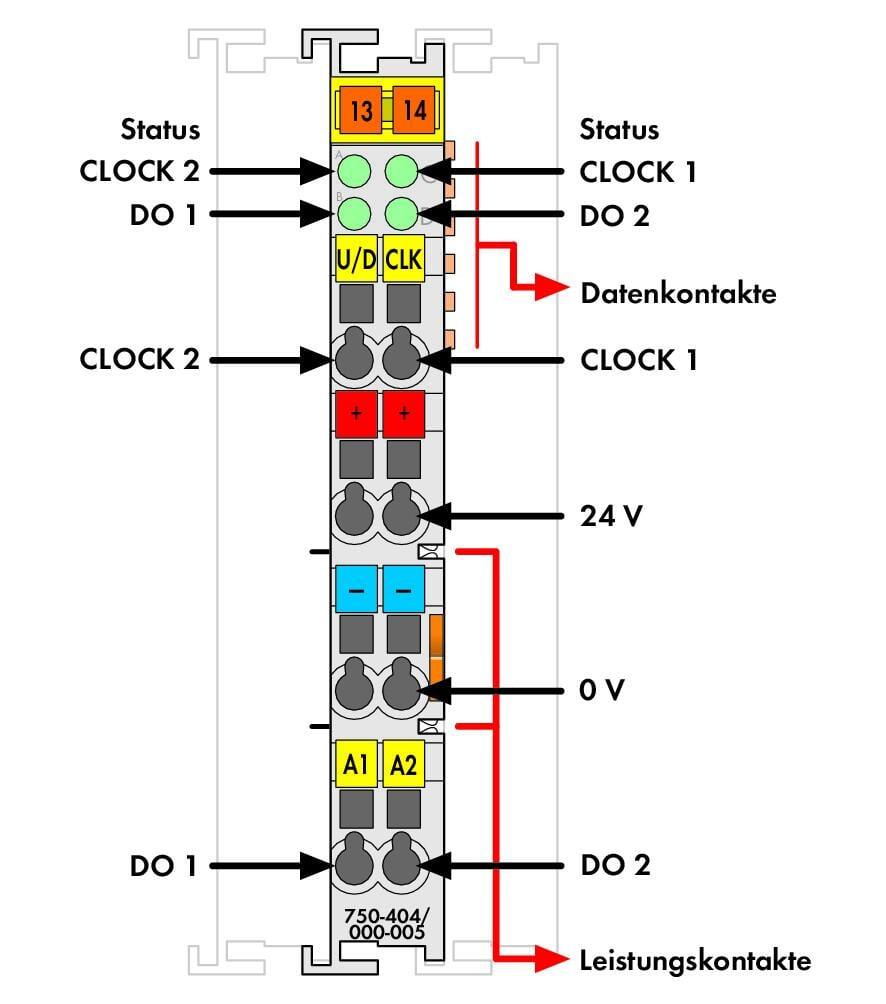

WAGO 750-404/000-005 2 up counter
Part Number # 750-404/000-005
SKU # 2308855
$535.84 / Each
Wago 750-404/000-005 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-404/000-005 |
| SKU #: | 2308855 |
| Dimensions: | 3.937 in H x 0.472 in W x 2.748 in D |
| Number of Digits: | 2 |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of counters: | 2 |
| Number of digital outputs: | 2 |
| Output current: | Short-circuit-protected |
| Output current per channel: | 0.5 A |
| Protection type: | IP20 |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Switching frequency (max.): | 5 kHz |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 49.000 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454429799 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$535.84 / Each
Quantity:
- WAGO, 750-404/000-005, 2 Digit, 5 VDC, 35 mm DIN Rail Mounting, Light Gray, 3.937 in H x 0.472 in W x 2.748 in D Dimensions
750-404/000-005 Application
For marine applications750-404/000-005 Standards
RoHS Compliant|CE|IP20SKU #2308855Part Number #750-404/000-005UNSPSC32151702UPC04045454429799
