750-409

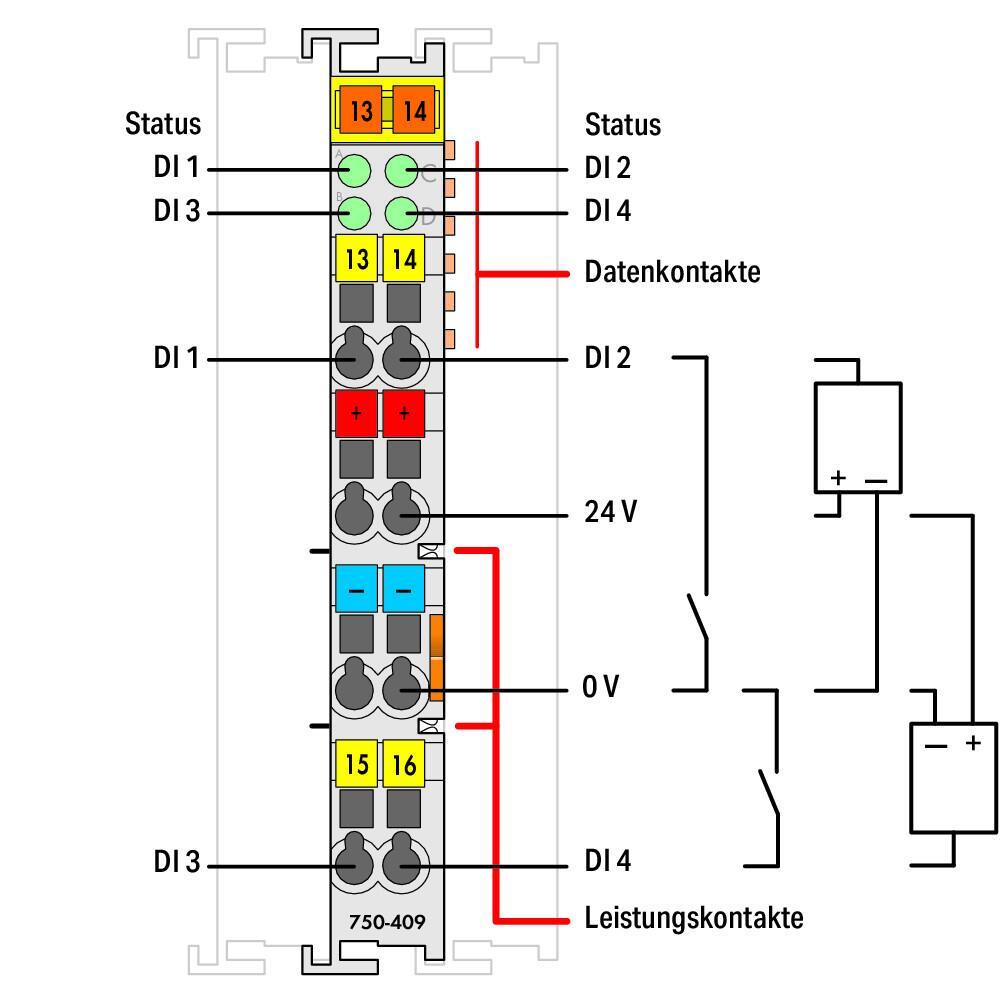

WAGO 750-409 4-channel digital input
Part Number # 750-409
SKU # 2255124
$84.20 / Each
Wago 750-409 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-409 |
| SKU #: | 2255124 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.74 in D |
| Enclosure Type: | IP20 |
| Input Type: | Digital |
| Type: | 4-Channel |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Input data width (internal) (max.): | 4 bit |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of digital inputs: | 4 |
| Protection type: | IP20 |
| Sensor connection: | 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors. |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Supply voltage (sensor): | DC 24 V |
| Total number of channels (module): | 4 |
| Vibration resistance: | Per IEC 60068-2-6 |
| Weight: | 46.164 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454392765 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.20 / Each
Quantity:
WAGO 750-409 4-channel digital input
Brand: Wago
Part Number: 750-409
Additional Description: WAGO-750-409 4-CHANNEL DIGITAL INPUT; 24 VDC; 0.2 MS; LOW-SIDE SWITCHING; LIGHT GRAY 51180782 GRAY 51180782
Catalog Description: 4-channel digital input; 24 VDC; 0.2 ms; Low-side switching
750-409 Standards
RoHS Compliant|CE|IP20SKU #2255124Part Number #750-409UNSPSC32151702UPC04045454392765
