Brand: Wago

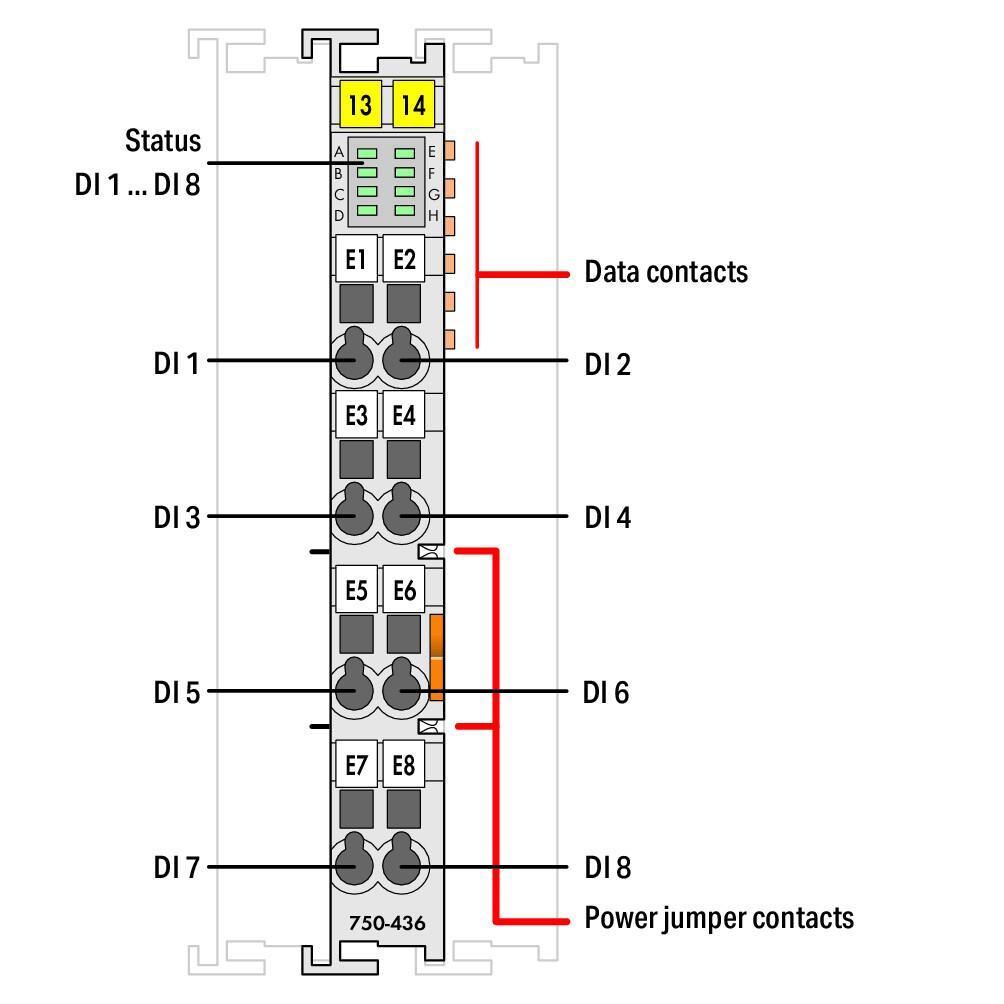

WAGO 750-436 8-channel digital input
Image Disclaimers Message
Brand: Wago
WAGO 750-436 8-channel digital input
Brand: Wago
WAGO 750-436 8-channel digital input
Part #:750-436
SKU #: 2137182
$120.73/EA
Key Features
Part #:750-436
SKU #: 2137182
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Height: 100 mm / 3.937 inch
$120.73/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Input data width (internal) (max.): 8 bit
Isolation: 500 V system/field
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of digital inputs: 8
Protection type: IP20
Sensor connection: 8 x (1-wire)
Signal type: Voltage
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Total number of channels (module): 8
Vibration resistance: 4g per IEC 60068-2-6
Weight: 47.864 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454428426
WAGO 750-436 8-channel digital input
Additional Description: WAGO-750-436 8-CHANNEL DIGITAL INPUT; 24 VDC; 3 MS; LOW-SIDE SWITCHING; LIGHT GRAY 51183019
Catalog Description: 8-channel digital input; 24 VDC; 3 ms; Low-side switching
