Brand: Wago

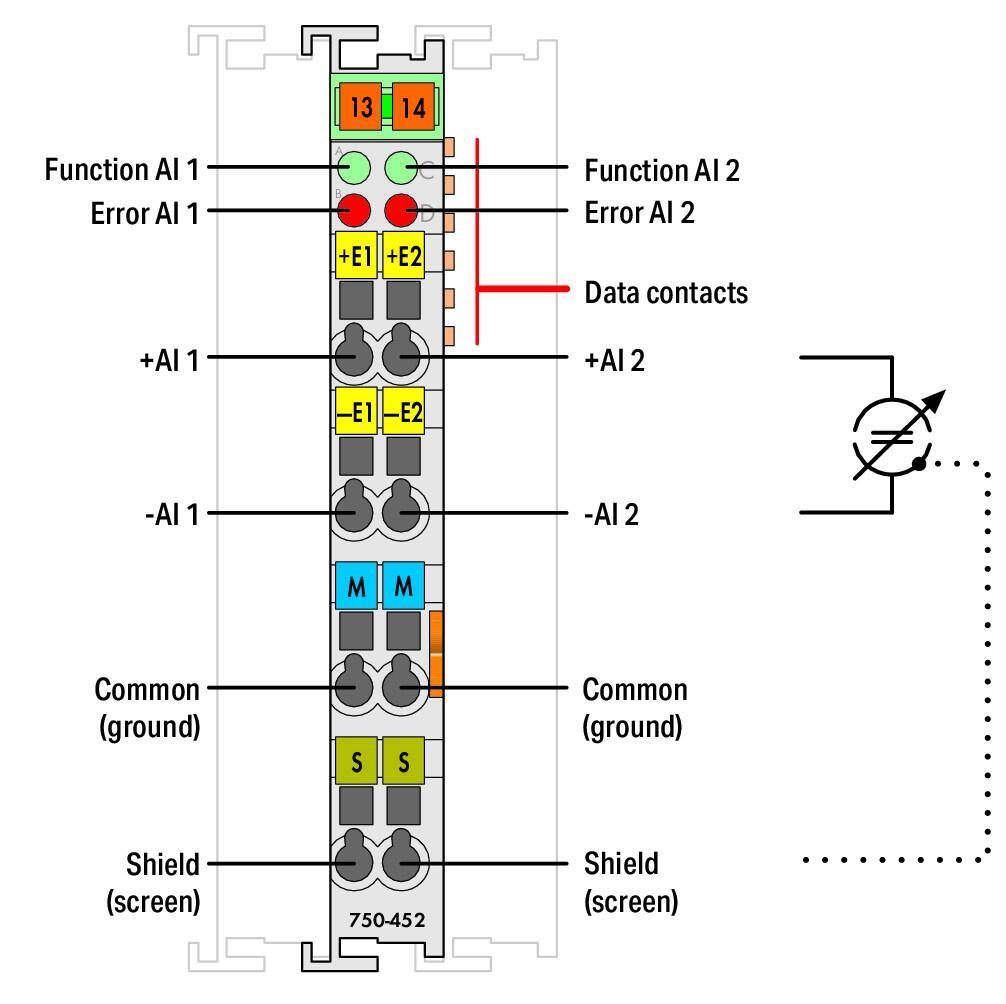

WAGO 750-452 2-channel analog input
Image Disclaimers Message
Brand: Wago
WAGO 750-452 2-channel analog input
Brand: Wago
WAGO 750-452 2-channel analog input
Part #:750-452
SKU #: 2142217
$461.14/EA
Key Features
Part #:750-452
SKU #: 2142217
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
$461.14/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of analog inputs: 2
Protection type: IP20
Sensor connection: 2 x (2-wire)
Signal characteristic: Differential
Signal type: Electricity
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Total number of channels (module): 2
Vibration resistance: 4g per IEC 60068-2-6
Weight: 50.500 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454484040
WAGO 750-452 2-channel analog input
Additional Description: WAGO-750-452 2-CHANNEL ANALOG INPUT; 0 20 MA; DIFFERENTIAL INPUT; LIGHT GRAY 51187045
Catalog Description: 2-channel analog input; 0 … 20 mA; Differential input
