Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Measured current (typ.): ≤ 350 µA
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of analog inputs: 4
Protection type: IP20

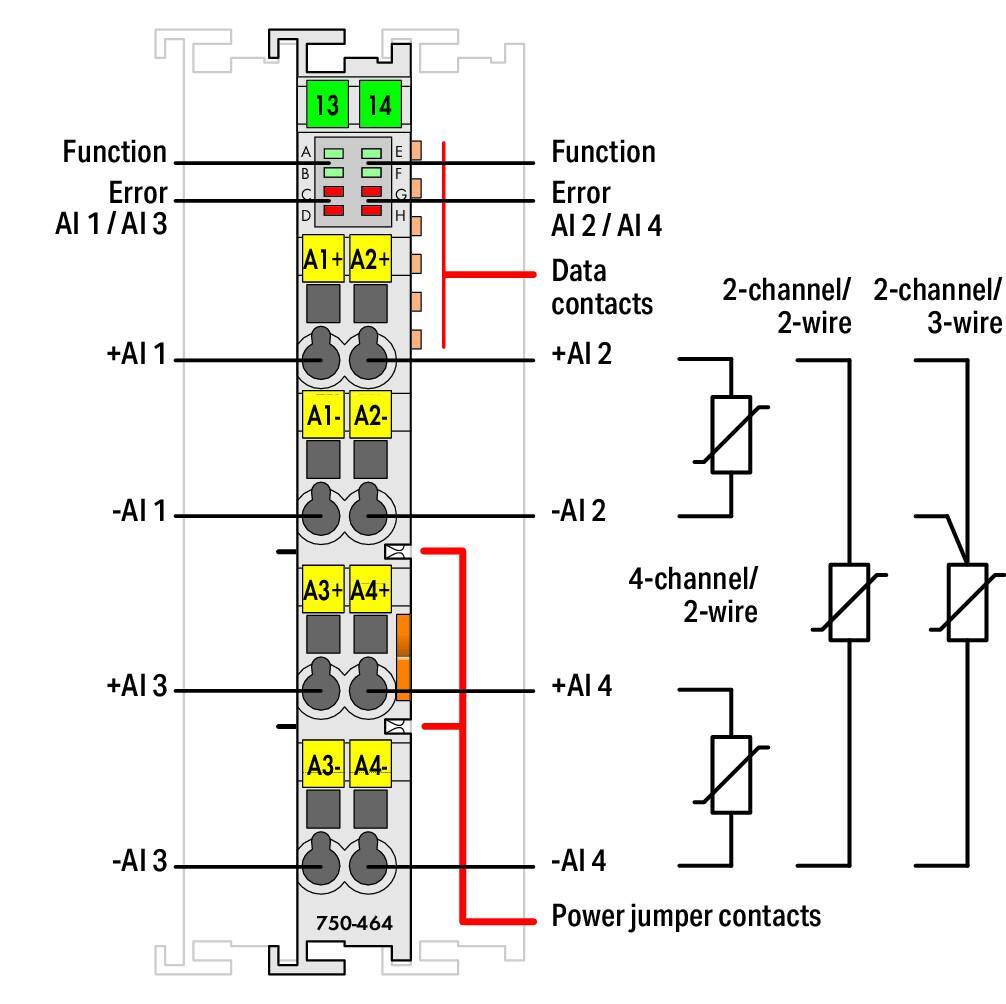

Sensor connection: 4 x (2-wire); 2 x (3-wire)
Sensor types: Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000; Potentiometer (2-channel operation only): 10R … 1k2, 10R … 5k0
Signal type: Resistance measurement || Potentiometer positions
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Temperature range: −200 … +850 °C (Pt100), −60 … +300 °C (Ni 100, Ni 1000), −60 … +250 °C (Ni 1000 TK5000), −80 … +260 °C (Ni 120)
Total number of channels (module): 4
Vibration resistance: 4g per IEC 60068-2-6
Weight: 49.664 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454976927
WAGO 750-464 2/4-channel analog input
Additional Description: WAGO-750-464 2/4-CHANNEL ANALOG INPUT; RESISTANCE MEASUREMENT; ADJUSTABLE; LIGHT GRAY 07500464
Catalog Description: 2/4-channel analog input; Resistance measurement; Adjustable
