- Measured value acquisition, Time synchronous within the module
- Measurement range overflo with underflow, Status byte and LED
- Conversion method, SAR (Successive Approximation Register)
- Operating mode, Continuously sampling (default)
- Protection, RC circuit
Specifications

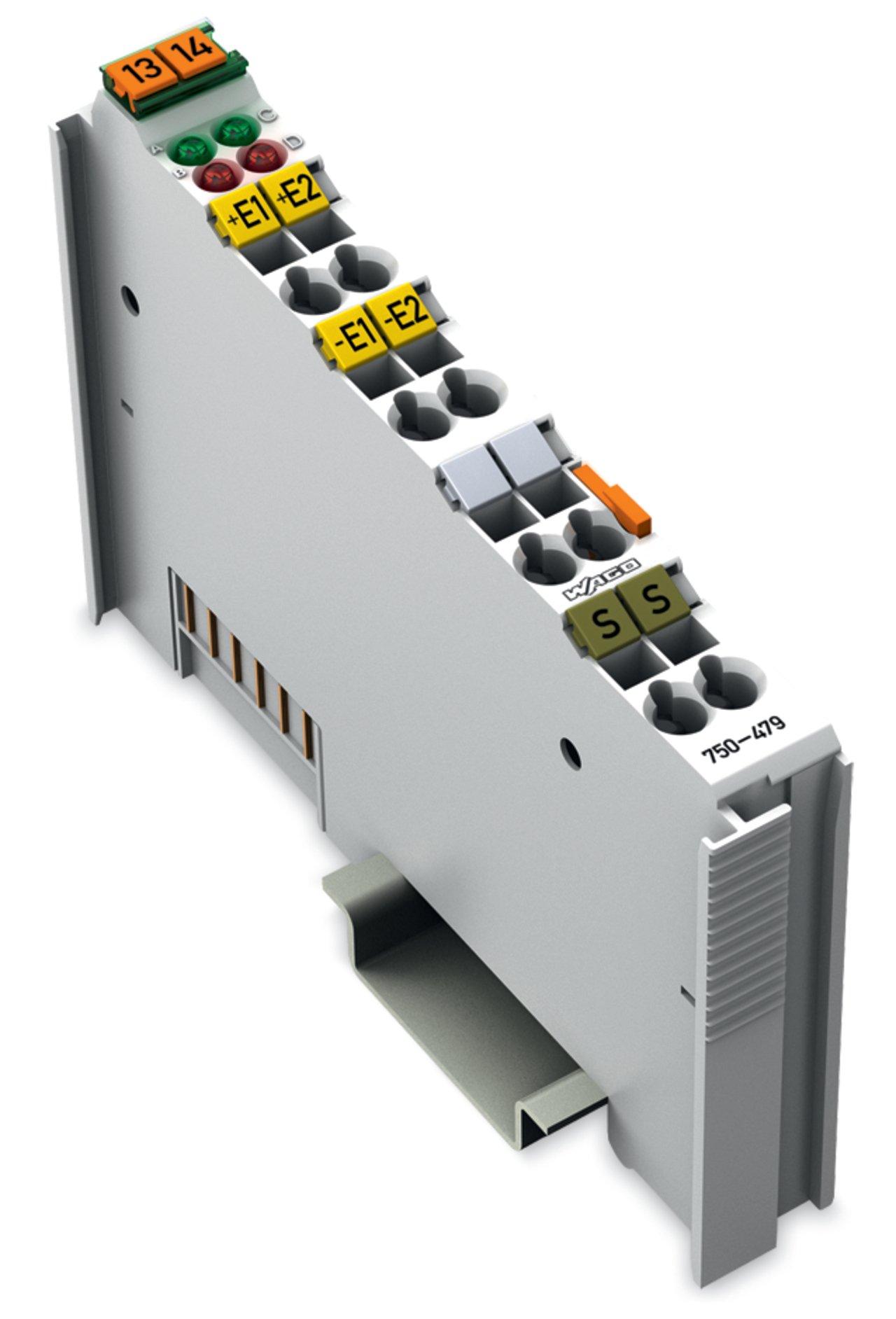

Brand: Wago
Amperage Rating: 100 mA
Dimensions: 3.937 in H x 0.472 in W x 2.748 in D
Series: 750
Temperature Rating (Degrees F): 0 to 55 deg C
Type: Analog
Voltage Rating: 5 VDC
Admissible continuous overload: 60 V
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field or channel/channel
Material: Polycarbonate/Polyamide 6.6
Measured value acquisition: Time synchronous within the module
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of analog inputs: 2
Number of inputs: 2
Operating mode: Continuously sampling (default)
Protection: RC circuit
Protection type: IP20
Resolution: 14 bit
Sensor connection: 2 x (2-wire)
Signal characteristic: Differential
Signal type: Voltage
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Total number of channels (module): 2
Vibration resistance: 4g per IEC 60068-2-6
Weight: 49.619 g
Width: 12 mm / 0.472 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04045454510237
Item Features
Item FeaturesRoHS Compliant
