750-484

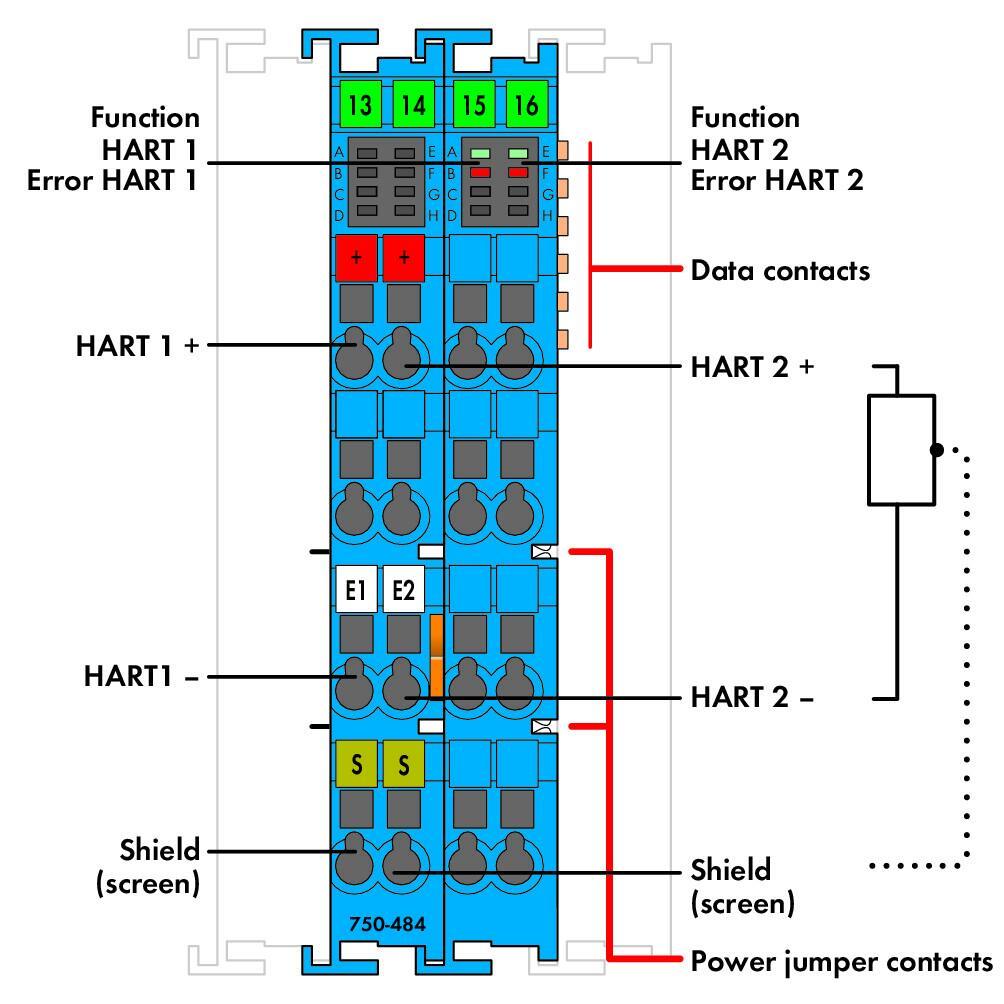

WAGO 750-484 2-channel analog input
Part Number # 750-484
SKU # 2228108
$1383.02 / Each
Wago 750-484 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-484 |
| SKU #: | 2228108 |
| Dimensions: | 3.93 in H x 0.94 in W x 2.66 in D |
| Enclosure Type: | IP20 |
| Input Type: | Analog |
| Type: | 2-Channel |
| Color: | Blue |
| Connection technology: | 16 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 67.8 mm / 2.669 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Intrinsic safety Ex i: | Yes |
| Isolation: | 300 VAC system/field |
| Marking: | ATEX, IECEx, INMETRO, Underwriters Laboratories Inc. |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of analog inputs: | 2 |
| Power consumption Pmax.: | 1.60 W (with slaves (20 mA)) |
| Protection type: | IP20 |
| Sensor connection: | 2 x (2-wire) |
| Signal characteristic: | Single-ended |
| Signal type: | Electricity |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Supply voltage (sensor): | DC 16.5 V; Transmitter supply UV at 20 mA |
| Total number of channels (module): | 2 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 92.000 g |
| Width: | 24 mm / 0.945 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04017332317603 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1383.02 / Each
Quantity:
WAGO 750-484 2-channel analog input
Brand: Wago
Part Number: 750-484
Additional Description: WAGO-750-484 2-CHANNEL ANALOG INPUT; 4 20 MA HART; INTRINSICALLY SAFE; BLUE 07500484
Catalog Description: 2-channel analog input; 4 … 20 mA HART; Intrinsically safe
750-484 Application
For marine applications750-484 Standards
RoHS Compliant|CE|IP20SKU #2228108Part Number #750-484UNSPSC32151702UPC04017332317603
