Brand: Wago
WAGO 750-495/040-001 3-Phase Power Measurement
Image Disclaimers Message
Brand: Wago
WAGO 750-495/040-001 3-Phase Power Measurement
Brand: Wago
WAGO 750-495/040-001 3-Phase Power Measurement
Part #:750-495/040-001
SKU #: 2375731
$1010.38/EA
Key Features
Part #:750-495/040-001
SKU #: 2375731
Brand: Wago
Color: Dark gray
Connection technology: 16 x CAGE CLAMP®
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Dielectric strength: 2.5 kV (AC)/3.5 kV (DC); per EN 60870-2-1
$1010.38/EA
Specifications
Brand: Wago
Color: Dark gray
Connection technology: 16 x CAGE CLAMP®
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Dielectric strength: 2.5 kV (AC)/3.5 kV (DC); per EN 60870-2-1
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Measurement components: Evaluating
Measurement method: True RMS measurement
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail

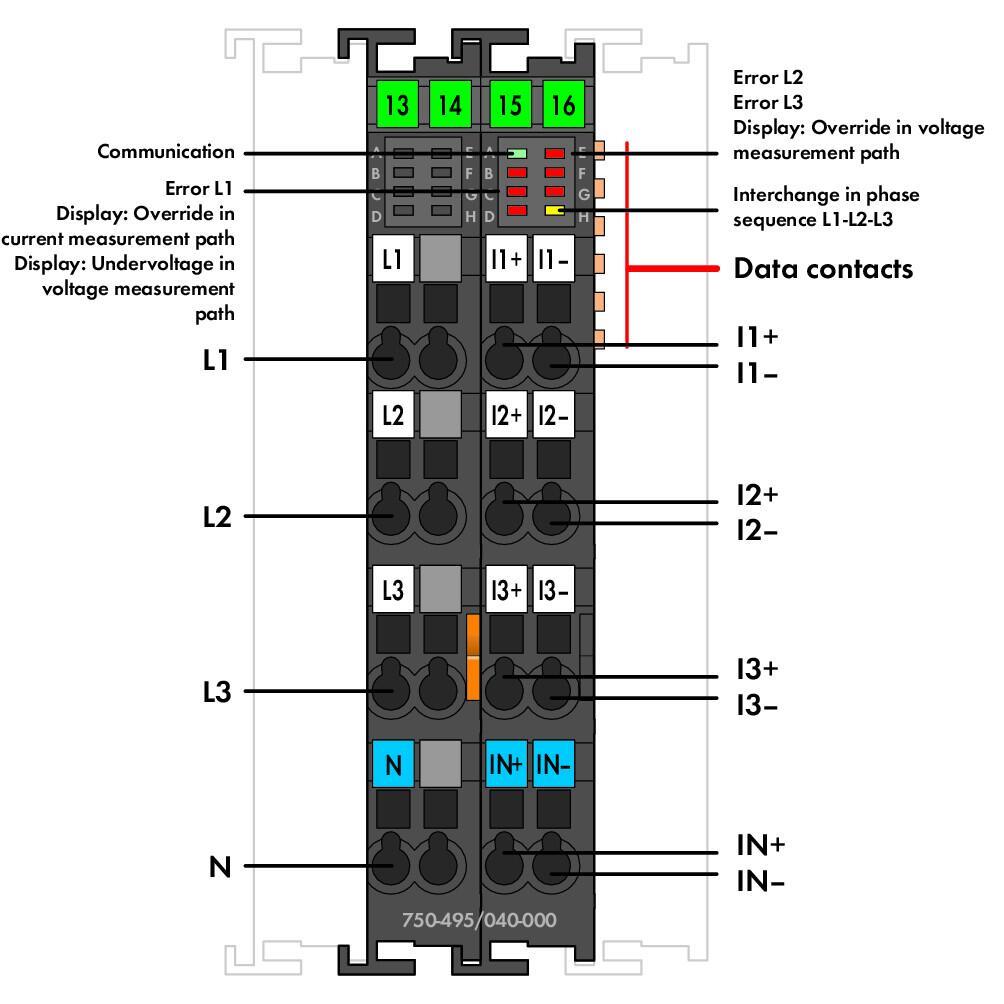

Number of measurement inputs: 7 (3 voltage measurement inputs, 4 differential current measurement inputs)
Protection type: IP20
Rated voltage: ULN = 400 VAC; ULL = 690 VAC
Signal form: Any periodic signals (considering the threshold frequencies)
Signal type: Power measurement
Solid conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Weight: 91.000 g
Width: 24 mm / 0.945 inch
UNSPSC: 32151603
UPC: 04055143353588
WAGO 750-495/040-001 3-Phase Power Measurement
Additional Description: WAGO-750-495/040-001 3-PHASE POWER MEASUREMENT; 690 VAC, 5 A; EXTREME; DARK GRAY 5A; EXTREME, DARK GRAY 60274301
Catalog Description: 3-Phase Power Measurement; 690 VAC, 5 A; Extreme
