Brand: Wago

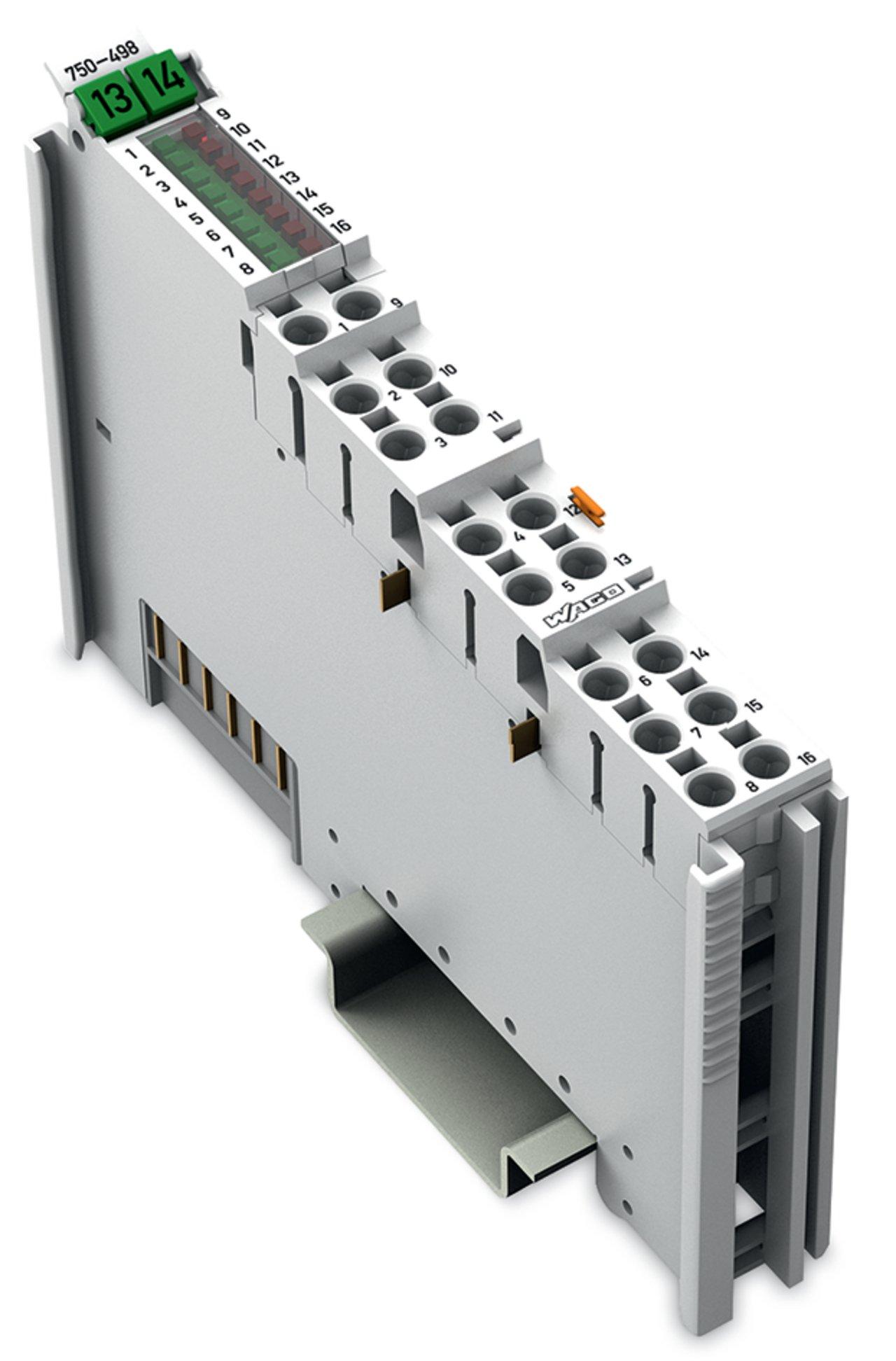

WAGO 750-498 8-channel analog input
Image Disclaimers Message
Brand: Wago
WAGO 750-498 8-channel analog input
Brand: Wago
WAGO 750-498 8-channel analog input
Part #:750-498
SKU #: 2385074
$553.04/EA
Key Features
Part #:750-498
SKU #: 2385074
Brand: Wago
Amperage Rating: 100 mA
Dimensions: 3.937 in H x 0.472 in W x 2.717 in D
Series: 750
Temperature Rating (Degrees F): 0 to 55 deg C
Type: Analog
$553.04/EA
Specifications
Brand: Wago
Amperage Rating: 100 mA
Dimensions: 3.937 in H x 0.472 in W x 2.717 in D
Series: 750
Temperature Rating (Degrees F): 0 to 55 deg C
Type: Analog
Voltage Rating: 5 VDC
Color: Light gray
Connection technology: 16 x Push-in CAGE CLAMP®
Country of origin: DE
Depth: 69 mm / 2.717 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Material: Polycarbonate/Polyamide 6.6
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of analog inputs: 8
Number of inputs: 8
Protection type: IP20
Sensor connection: 8 x (2-wire)
Sensor types: Type K, J, B, E, N, R, S, T, C; Voltage measurement: ±30 mV; ±60 mV; ±120 mV; ±240 mV
Signal type: Thermocouple || Low voltages
Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
Total number of channels (module): 8
Vibration resistance: 4g per IEC 60068-2-6
Weight: 48.900 g
Width: 12 mm / 0.472 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04055143944380
WAGO 750-498 8-channel analog input
Additional Description: WAGO-750-498 8AI TC, LIGHT GRAY 60420607
Catalog Description: 8-channel analog input; Thermocouple; Adjustable
Item FeaturesRoHS Compliant|CE Marked|IEC 61131-2|IEC 60068-2-6|IP20|IEC 60068-2-27|EN 61000-6-2|EN 61131-2|EN 61000-6-3|EN 61131-2|IEC 60068-2-42|IEC 60068-2-43|IEC 60068-2-27
