Part Number # 750-508

SKU # 2247814

Image Disclaimers Message

Brand: Wago

750-508

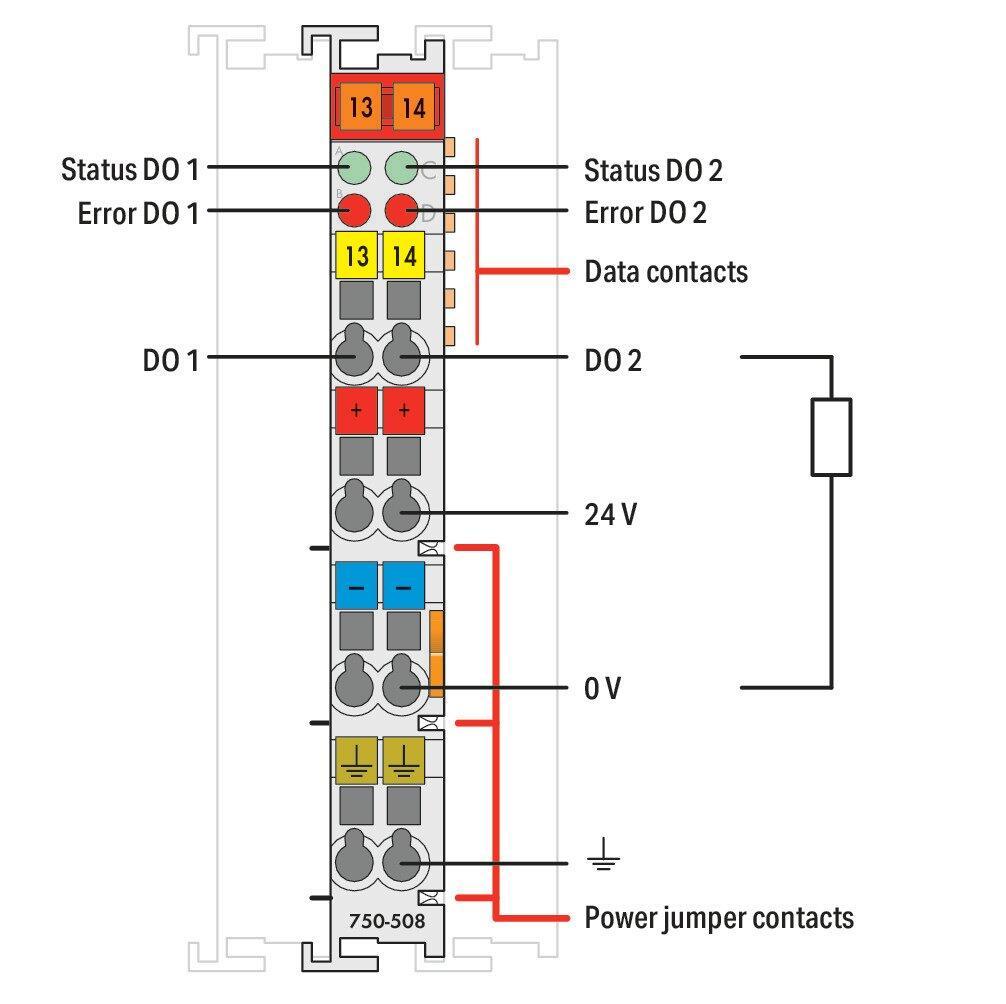

WAGO 750-508 2-channel digital output

Part Number # 750-508

SKU # 2247814

$144.79 / Each

Wago 750-508 Key Features

Brand:Wago
Part Number # :750-508
SKU #:2247814
Dimensions:3.93 in H x 0.47 in W x 2.74 in D
Enclosure Type:IP20
Type:2-Channel
Color:Light gray
Connection technology:8 x CAGE CLAMP®
Country of origin:DE
Depth:69.8 mm / 2.748 inch
Height:100 mm / 3.937 inch
Housing material:Polycarbonate, polyamide 6.6
Input data width (internal) (max.):2 bit
Isolation:500 V system/field
Load type:Resistive, inductive, lamp load
Material:Polycarbonate/Polyamide 6.6
Mounting position:Horizontal (standing/lying); vertical
Mounting type:35 mm DIN Rail, DIN-35 rail
Number of digital outputs:2
Open-circuit detection:0.2 mA
Output characteristic:High-side switching
Output current:Short-circuit-protected
Output current per channel:0.0833333333333333
Output type:Digital
Protection type:IP20
Reverse voltage protection:Yes
Signal type:Voltage
Solid conductor:0.08 … 2.5 mm² / 28 … 14 AWG
Switching frequency (max.):1 kHz
Total number of channels (module):2
Vibration resistance:4g per IEC 60068-2-6
Weight:47.827 g
Width:12 mm / 0.472 inch
Manufacturer Name:WAGO Corporation
UNSPSC:32151702
UPC: 04045454801229
