Part Number # 750-515
SKU # 2327685
Image Disclaimers Message
Brand: Wago
750-515

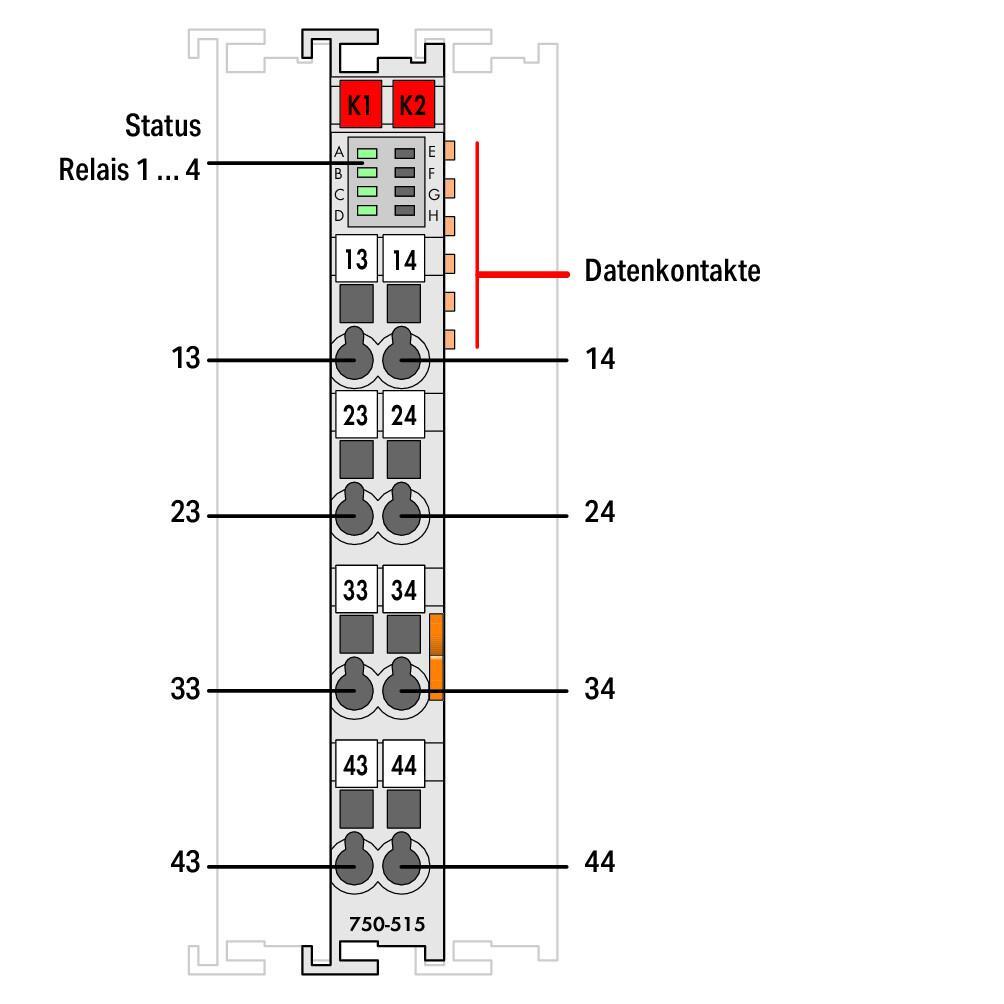

WAGO 750-515 4-channel relay output
Part Number # 750-515
SKU # 2327685
$216.97 / Each
Wago 750-515 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-515 |
| SKU #: | 2327685 |
| Connection technology: | 8 x CAGE CLAMP® |
| Contact material: | AgNi + Au |
| Country of origin: | DE |
| Depth: | 67.8 mm / 2.669 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 1500 V (system/field) |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | DIN-35 rail |
| Number of digital outputs: | 4 |
| Output characteristic: | Potential-free |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Switching current (max.): | 0.0833333333333333 |
| Switching frequency (max.): | 0.33 Hz; 3 A / 250 VAC, 30 VDC |
| Switching frequency (max.) (2): | 0.1 Hz; 5 A / 250 VAC, 30 VDC |
| Switching power: | 1250 VA / 150 W; cos ϕ max. = 0.4; L/R max. = 7 ms |
| Total number of channels (module): | 4 |
| Vibration resistance: | Per IEC 60068-2-6 |
| Weight: | 56.000 g |
| Width: | 12 mm / 0.472 inch |
| UNSPSC: | 32151702 |
| UPC: | 04055143512831 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$216.97 / Each
Quantity:
WAGO 750-515 4-channel relay output
Brand: Wago
Part Number: 750-515
Additional Description: WAGO-750-515 4-CHANNEL RELAY OUTPUT; AC 250 V; 2.0 A; POTENTIAL-FREE; 4 MAKE CONTACTS; LIGHT GRAY 2,0 A, ISOLATED OUTPUTS, 4 MAKE CONTACTS
Catalog Description: 4-channel relay output; AC 250 V; 2.0 A; Potential-free; 4 make contacts
SKU #2327685Part Number #750-515UNSPSC32151702UPC04055143512831
