Brand: Wago

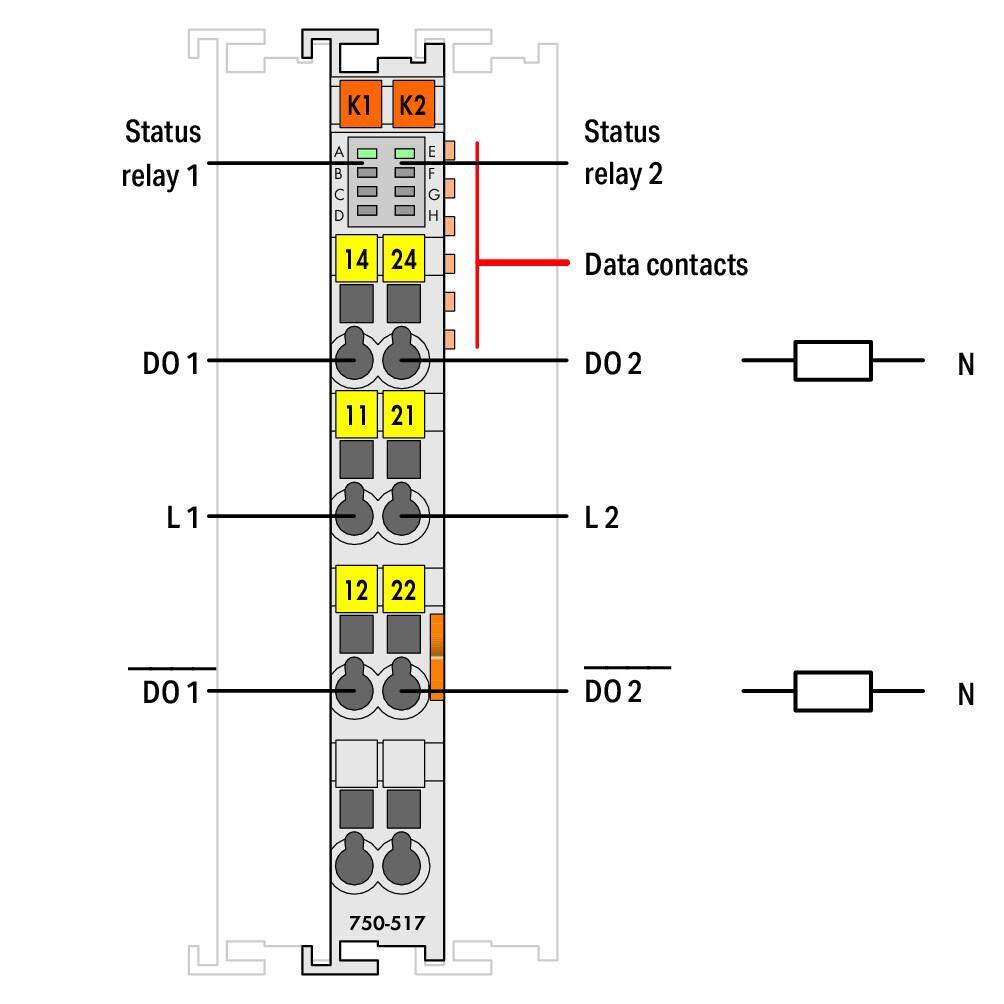

WAGO 750-517 2-channel relay output
Image Disclaimers Message
Brand: Wago
WAGO 750-517 2-channel relay output
Brand: Wago
WAGO 750-517 2-channel relay output
Part #:750-517
SKU #: 1027623
$112.25/EA
Key Features
Part #:750-517
SKU #: 1027623
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Contact material: Ag alloy
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
$112.25/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Contact material: Ag alloy
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 1500 V (system/field)
Mechanical switching operations (min.) (at max. resistive load): 5 x 106
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of digital outputs: 2
Output characteristic: Potential-free
Protection type: IP20
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Switching current (max.): 0.0416666666666667
Switching current (min.): 100 mA
Switching frequency (max.): 0.1 Hz; Nominal load
Total number of channels (module): 2
Vibration resistance: 4g per IEC 60068-2-6
Weight: 52.363 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454393519
WAGO 750-517 2-channel relay output
Additional Description: WAGO-750-517 2-CHANNEL RELAY OUTPUT; AC 250 V; 1 A; POTENTIAL-FREE; 2 CHANGEOVER CONTACTS; LIGHT GRAY 51180857
Catalog Description: 2-channel relay output; AC 250 V; 1 A; Potential-free; 2 changeover contacts
