Brand: Wago

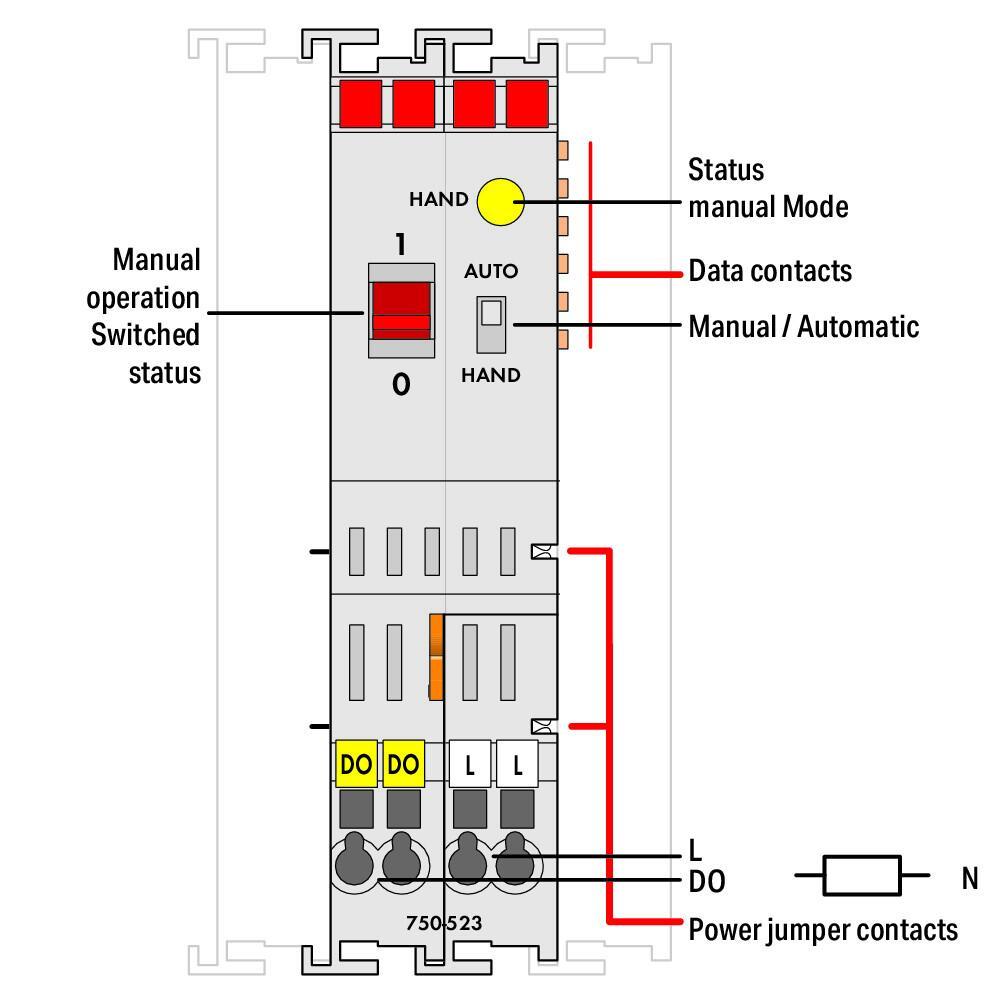

WAGO 750-523 1-channel relay output
Image Disclaimers Message
Brand: Wago
WAGO 750-523 1-channel relay output
Brand: Wago
WAGO 750-523 1-channel relay output
Part #:750-523
SKU #: 2177514
$151.80/EA
Key Features
Part #:750-523
SKU #: 2177514
Brand: Wago
Color: Light gray
Connection technology: 4 x CAGE CLAMP®
Contact material: AgSnO2
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
$151.80/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 4 x CAGE CLAMP®
Contact material: AgSnO2
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Input data width (internal) (max.): 2 bit
Isolation: 1500 V (system/field)
Mechanical life: 106
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of digital outputs: 1
Output characteristic: Potential-free
Protection type: IP20
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Switching current (max.): 16 A
Switching power: Max. 5 kVA
Total number of channels (module): 1
Vibration resistance: 4g per IEC 60068-2-6
Weight: 101.887 g
Width: 24 mm / 0.945 inch
UNSPSC: 32151702
UPC: 04045454495428
WAGO 750-523 1-channel relay output
Additional Description: WAGO-750-523 1-CHANNEL RELAY OUTPUT; AC 250 V; 16 A; POTENTIAL-FREE; 1 MAKE CONTACT; LIGHT GRAY 51187575 CONTACT; LIGHT GRAY 51187575
Catalog Description: 1-channel relay output; AC 250 V; 16 A; Potential-free; 1 make contact
