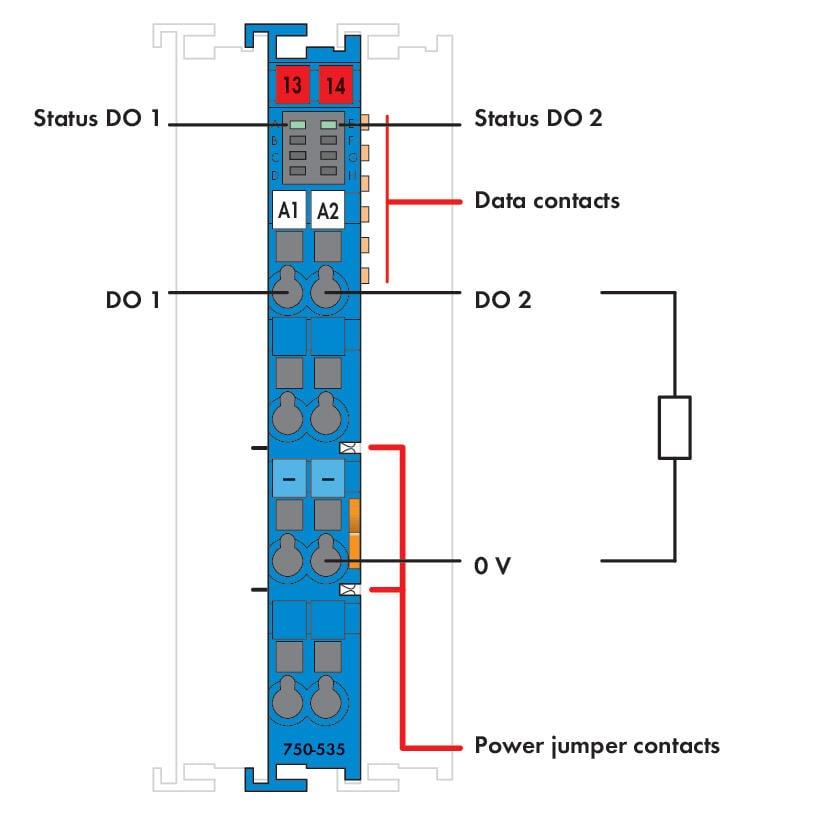

WAGO 750-535 2-channel digital output
Part Number # 750-535
SKU # 2227698
$318.14 / Each
Wago 750-535 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-535 |
| SKU #: | 2227698 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.66 in D |
| Enclosure Type: | IP20 |
| Type: | 2-Channel |
| Color: | Blue |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 67.8 mm / 2.669 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Intrinsic safety Ex i: | Yes |
| Isolation: | 300 VAC system/field |
| Load type: | Resistive, inductive, lamp load |
| Marking: | ATEX, IECEx, INMETRO, Underwriters Laboratories Inc. |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of digital outputs: | 2 |
| Output characteristic: | High-side switching |
| Output type: | Digital |
| Power consumption Pmax.: | 2.1 W (at 40 mA output current) |
| Protection type: | IP20 |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Switching frequency (max.): | 1 kHz |
| Total number of channels (module): | 2 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 50.600 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454725563 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$318.14 / Each
Quantity:
WAGO 750-535 2-channel digital output
Brand: Wago
Part Number: 750-535
Additional Description: WAGO-750-535 2-CHANNEL DIGITAL OUTPUT; 24 VDC; INTRINSICALLY SAFE; BLUE 51202848 51202848
Catalog Description: 2-channel digital output; 24 VDC; Intrinsically safe
750-535 Application
For marine applications750-535 Item Features
- Green LED (output status)
750-535 Standards
RoHS Compliant|CE|IP20SKU #2227698Part Number #750-535UNSPSC32151702UPC04045454725563
