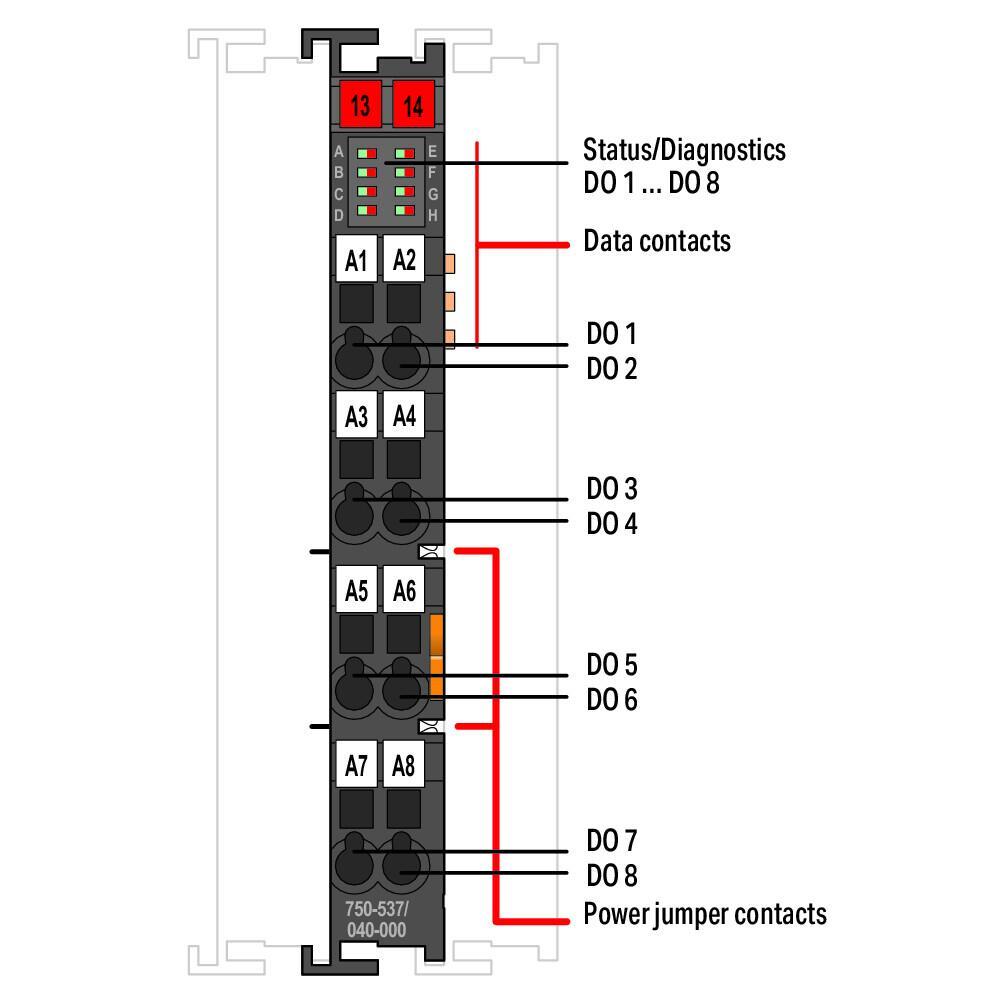

WAGO 750-537/040-000 8-channel digital output

Name: WAGO 750-537/040-000 8-channel digital output
Brand: Wago
SKU: 2345384
Price: 285.4546 USD
Availability: InStock

Part Number # 750-537/040-000

SKU # 2345384

$285.45 / Each

Wago 750-537/040-000 Key Features

Brand:	Wago
Part Number # :	750-537/040-000
SKU #:	2345384
Dimensions:	3.93 in H x 0.47 in W x 2.66 in D
Enclosure Type:	IP20
Type:	8-Channel
Color:	Dark gray
Connection technology:	8 x CAGE CLAMP®
Country of origin:	DE
Depth:	67.8 mm / 2.669 inch
Dielectric strength:	510 VAC/775 VDC; per EN 60870-2-1
Height:	100 mm / 3.937 inch
Housing material:	Polycarbonate, polyamide 6.6
Input data width (internal) (max.):	8 bit
Load type:	Resistive, inductive, lamp load
Material:	Polycarbonate/Polyamide 6.6
Mounting position:	Horizontal (standing/lying); vertical
Mounting type:	35 mm DIN Rail, DIN-35 rail
Number of digital outputs:	8
Open-circuit detection:	0.1 mA
Output characteristic:	High-side switching
Output current:	Short-circuit-protected
Output current per channel:	0.5 A
Output type:	Digital
Protection type:	IP20
Signal type:	Voltage
Solid conductor:	0.25 … 2.5 mm² / 24 … 14 AWG
Switching frequency (max.):	1 kHz
Total number of channels (module):	8
Vibration resistance:	Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Weight:	50.200 g
Width:	12 mm / 0.472 inch
Manufacturer Name:	WAGO Corporation
UNSPSC:	32151702
UPC:	04055143673266

Buy Now Pay Later

Get 30 days to pay with Net 30 Terms. Apply Now.

$285.45 / Each

Quantity:

WAGO 750-537/040-000 8-channel digital output

Brand: Wago

Part Number: 750-537/040-000

Additional Description: WAGO-750-537/040-000 8-CHANNEL DIGITAL OUTPUT; 24 VDC; 0.5 A; DIAGNOSTICS; EXTREME 60352827

Catalog Description: 8-channel digital output; 24 VDC; 0.5 A; Diagnostics; Extreme

For marine applications

RoHS Compliant|CE|IP20

SKU #2345384

Part Number #750-537/040-000

UNSPSC32151702

UPC04055143673266
